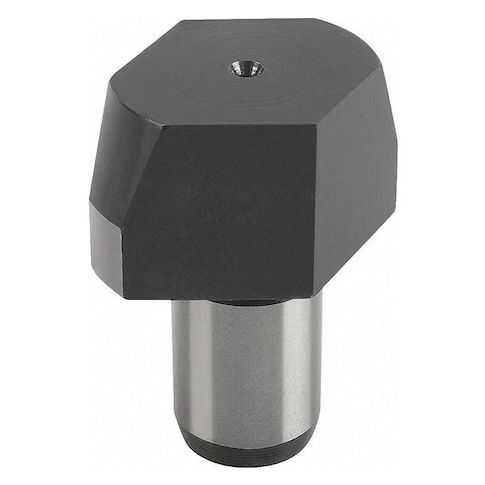

Locating Pin, Long, DIN 6321 Form C Flattened, D1= 12, H=18, D2= 6, Tool Steel Hardened & Ground MPN:K0293.512
Locating Pin, Long, DIN 6321 Form C Flattened, D1= 12, H=18, D2= 6, Tool Steel Hardened & Ground
This precision Locating Pin is designed for demanding applications where precise positioning is crucial. Made from tool steel and hardened to a high standard, it ensures long-lasting accuracy and reliability. Its unique stepped design allows for secure placement in metric systems, while the flattened head provides a stable reference point. Ideal for use in CNC machining, precision assembly, and quality control, this locating pin helps ensure repeatable results and minimizes errors. Its compact size and lightweight design make it easy to handle and store, making it an essential tool for manufacturers and engineers who demand precision and reliability.
Top product features:
- Has a flattened head shape
- Made from tool steel for durability
- Has a stepped design with a shoulder for secure location
Top product applications:
- Locating Pin, Long, DIN 6321 Form C Flattened can be used in CNC machining to locate and align workpieces during machining operations.
- It can be used as a precision locating pin in the automotive industry for engine and transmission assembly.
- The product can be used in the aerospace industry as a locating pin for assembling and aligning aircraft components.
Stepped Diamond Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Flattened, Head Diameter 12 mm, Head Height 18 mm, Shank Outside Diameter 6 mm, Shoulder Height 3 mm, Head Chamfer Length 6 mm, Shank Chamfer Angle 15 Degrees , Material Tool Steel, Shank Length 9 mm, Standards DIN 6321, RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.02
