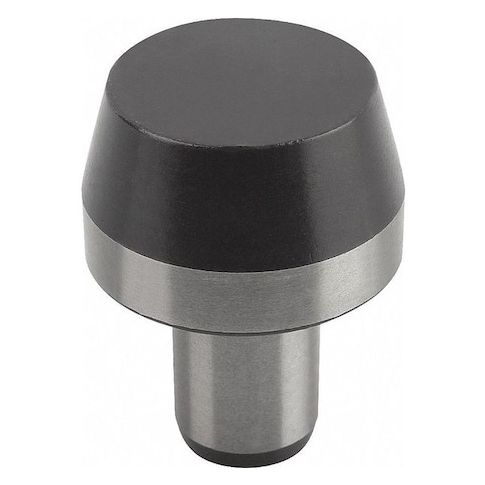

Locating Pin, Long, DIN 6321 Form B Cylindrical, D1= 6, H=12, D2= 4, Tool Steel Hardened & Ground MPN:K0293.306
Locating Pin, Long, DIN 6321 Form B Cylindrical, D1= 6, H=12, D2= 4, Tool Steel Hardened & Ground
This long, DIN 6321 form B cylindrical locating pin is a precision tool made from tool steel, hardened and ground for maximum accuracy. Its 6mm head diameter and 12mm head height provide a stable foundation for various applications, including manufacturing and assembly. The pin's stepped design with a 4mm shank outside diameter and 2mm shoulder height allow for easy installation and secure positioning. Ideal for use in metric systems, this locating pin is suitable for applications in the automotive, aerospace, and medical industries where precision and reliability are crucial. Its compact size and lightweight design make it easy to handle and store.
Top product features:
- Long, DIN 6321 Form B Cylindrical shape provides a secure fit in applications.
- Tool Steel Hardened & Ground construction ensures durability and resistance to wear.
- Shouldered design with a 2 mm shoulder height allows for precise alignment and positioning.
Top product applications:
- Locating Pin can be used in precision engineering applications where accurate positioning is required.
- It can be used in the manufacturing of medical devices, where precise alignment is crucial.
- It can be used in the production of high-precision machinery, such as clock mechanisms or other equipment that requires precise movement.
Stepped Round Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Cylindrical, Head Diameter 6 mm, Head Height 12 mm, Shank Outside Diameter 4 mm, Shoulder Height 2 mm, Head Chamfer Length 4 mm, Shank Chamfer Angle 15 Degrees , Material Tool Steel, Shank Length 6 mm, Standards DIN 6321, RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.02
