Locating Pin, Short, DIN 6321 Form C Flattened, D1= 12, H=10, D2= 6, Tool Steel Hardened & Ground MPN:K0293.412

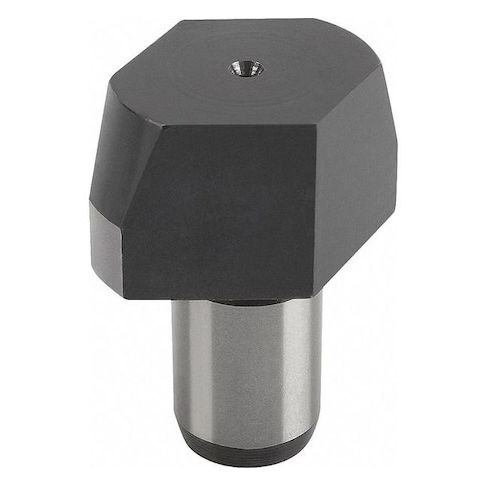

Locating Pin, Short, DIN 6321 Form C Flattened, D1= 12, H=10, D2= 6, Tool Steel Hardened & Ground
This precision locating pin is designed for applications requiring high accuracy and reliability. Made from tool steel, it features a hardened and ground construction to ensure durability and resistance to wear. The flattened head and stepped design provide a secure fit in metric systems, making it ideal for use in manufacturing, assembly, and quality control processes. With a lead time of just 2 days, this product can be easily integrated into production workflows. Its compact size and low weight also make it suitable for use in a variety of industries, including aerospace, automotive, and medical device manufacturing.
Top product features:
- Stepped diamond locating pin allows for precise positioning in metric systems
- Tool steel hardened and ground construction provides durability and resistance to wear
- Flattened head shape enables secure seating and stable positioning in applications
Top product applications:
- Locating Pin can be used as a precision guide in machine tool fixtures for accurate part placement and orientation.
- Locating Pin can be used as a precision locating device in jigs and fixtures for assembly and inspection operations.
- Locating Pin can be used as a precision locating pin in inspection and measurement instruments for accurate positioning of parts.
Stepped Diamond Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Flattened, Head Diameter 12 mm, Head Height 10 mm, Shank Outside Diameter 6 mm, Shoulder Height 3 mm, Head Chamfer Length 6 mm, Shank Chamfer Angle 15 Degrees , Material Tool Steel, Shank Length 9 mm, Standards DIN 6321, RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.03
