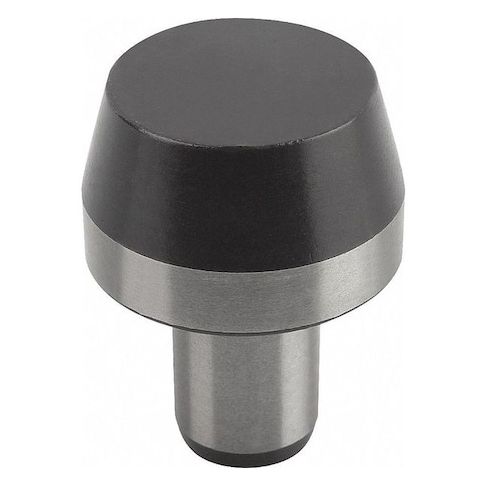

Locating Pin, Short, DIN 6321 Form B Cylind., D1= 25, H=15, D2= 12, Tool Steel Hardened & Ground MPN:K0293.225
Locating Pin, Short, DIN 6321 Form B Cylind., D1= 25, H=15, D2= 12, Tool Steel Hardened & Ground
This DIN 6321 compliant locating pin is a precision-engineered tool made from hardened and ground tool steel, ensuring exceptional durability and accuracy. With a stepped round design and a cylindrical head, it provides a secure fit in metric measurement systems. Suitable for various applications, including manufacturing, assembly, and quality control, this locating pin offers a reliable and consistent solution for precision operations. Its compact size and lightweight design make it easy to handle and store, while its tool steel construction ensures a long lifespan and resistance to wear and tear.
Top product features:
- Tool Steel Hardened & Ground for durability and resistance to wear
- Cylindrical head shape for precise location and alignment
- Shouldered design with a 9 mm shoulder height for secure fit and stability
Top product applications:
- Machine tool fixtures and jigs
- CNC machine tooling and automation
- Precision assembly and inspection equipment
Stepped Round Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Cylindrical, Head Diameter 25 mm, Head Height 15 mm, Shank Outside Diameter 12 mm, Shoulder Height 9 mm, Head Chamfer Length 9 mm, Shank Chamfer Angle 15 Degrees , Material Tool Steel, Shank Length 18 mm, Standards DIN 6321, RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.29
