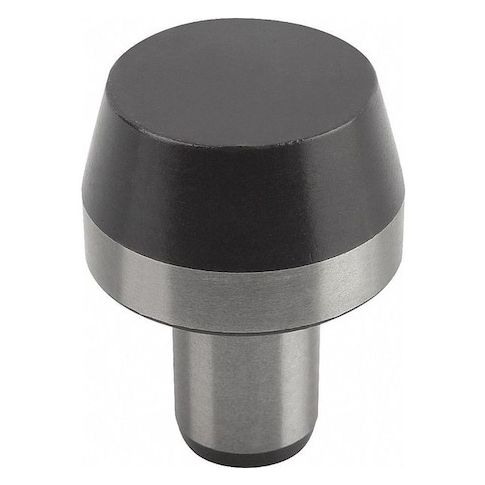

Locating Pin, Short, DIN 6321 Form B Cylindrical, D1= 10, H=10, D2= 6, Tool Steel Hardened & Ground MPN:K0293.210
Locating Pin, Short, DIN 6321 Form B Cylindrical, D1= 10, H=10, D2= 6, Tool Steel Hardened & Ground
This precision locating pin is designed for use in metric-based applications, meeting the DIN 6321 standard. Made from tool steel, it is hardened and ground for optimal performance. The pin features a stepped design with a 10mm head diameter and 6mm shank diameter, making it suitable for a variety of applications, including machinery and equipment assembly. Its compact size and precision tolerances ensure accurate positioning and repeatability. Ideal for use in industries such as aerospace, automotive, and medical device manufacturing, this locating pin provides reliable and consistent results, reducing downtime and increasing productivity.
Top product features:
- Tool Steel Hardened & Ground for durability and resistance to wear
- Cylindrical head shape with a diameter of 10 mm for precise location and fit
- Shouldered design with a shoulder height of 3 mm for secure positioning and stability
Top product applications:
- Locating Pin can be used in Automotive applications such as engine mounting and assembly.
- Locating Pin is suitable for use in Aerospace applications where precision and reliability are crucial.
- Locating Pin can be used in Machine Building applications such as gearboxes and other mechanical assemblies.
Stepped Round Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Cylindrical, Head Diameter 10 mm, Head Height 10 mm, Shank Outside Diameter 6 mm, Shoulder Height 3 mm, Head Chamfer Length 6 mm, Shank Chamfer Angle 15 Degrees , Material Tool Steel, Shank Length 9 mm, Standards DIN 6321, RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.03
