Stepped Round Locating Pin, 12 mm dia MPN:K0818.12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G108073262

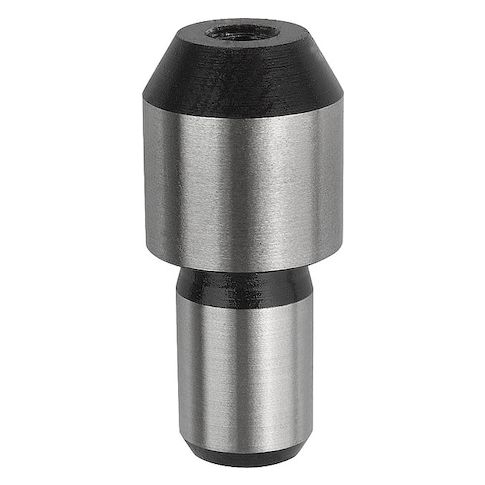

Stepped Round Locating Pin, 12 mm dia
This Stepped Round Locating Pin from KIPP is a precision tool designed for applications requiring secure and reliable component positioning. With a 12 mm diameter head and 8 mm shank, this pin is ideal for use in metric-based systems. The shouldered design provides a secure fit in round holes, while the tool steel construction ensures durability and resistance to wear. Suitable for use in a variety of industries, including aerospace, automotive, and industrial manufacturing, this pin is a valuable addition to any toolset. Its compact size and lightweight design make it easy to handle and store.
Top product features:
- Stepped design provides a secure fit in round holes
- Shouldered head allows for easy location and orientation
- Tool steel material ensures durability and resistance to wear
Top product applications:
- Locating parts in a metric system assembly
- Positioning a round component in a precision instrument
- Locating a shaft in a machinery component assembly
Stepped Round Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Round, Head Diameter 12 mm, Head Height 12 mm, Shank Outside Diameter 8 mm, Head Chamfer Length 4 mm, Material Tool Steel, Shank Length 13 mm, Standards RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.05
Product info last updated on January 17, 2026 10:34am UTC
Category: Machining
