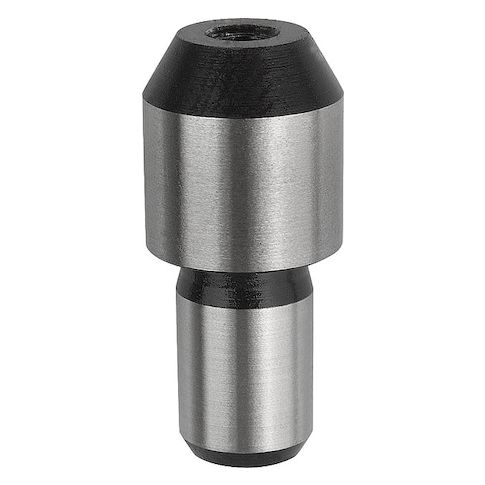

Stepped Round Locating Pin, 25 mm dia MPN:K0818.25
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G008073263
Stepped Round Locating Pin, 25 mm dia
The Stepped Round Locating Pin from KIPP is a precision tool designed for applications requiring high accuracy and reliability. With a 25mm diameter head and 17mm height, this pin provides a secure locating point for various industrial processes. Its tool steel construction ensures durability and resistance to wear. The pin's stepped design allows for easy installation and removal, making it ideal for use in manufacturing, assembly, and quality control settings. Its compact size and lightweight design also make it suitable for use in robotics and automation applications, where precision and speed are crucial.
Top product features:
- Stepped design allows for precise location and alignment of the pin in a round hole
- Shouldered head provides a secure stop for the pin, preventing over-insertion
- Tool steel material ensures durability and resistance to wear and tear
Top product applications:
- Locating and holding parts in a rotary table or indexer
- Machining and drilling operations in a CNC machine
- Precision assembly and alignment of components in an industrial setting
Stepped Round Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Round, Head Diameter 25 mm, Head Height 17 mm, Shank Outside Diameter 18 mm, Head Chamfer Length 5 mm, Material Tool Steel, Shank Length 25 mm, Standards RoHS
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.24
Product info last updated on February 27, 2026 2:28am UTC
Category: Machining
