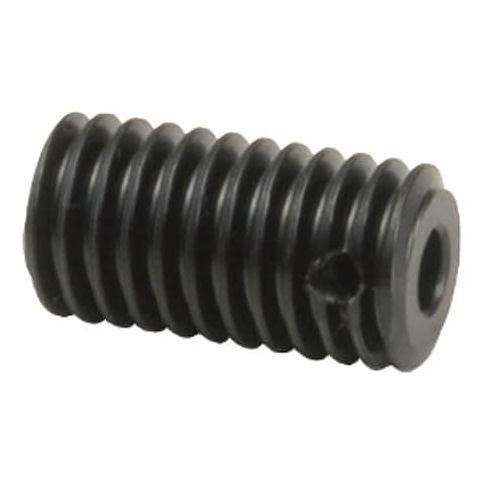

Ground and Machined Steel Worms MPN:SW0.5-R2
Ground and Machined Steel Worms
These high-quality, ground and machined steel worms from KHK USA are engineered for precision and durability. With a bore diameter of 5 mm and a face width of 10 mm, they are ideal for applications that require smooth, efficient gear movement. The black oxide finish provides corrosion resistance, while the carbon steel material ensures maximum strength and hardness. Suitable for use in robotics, automation, and mechanical systems, these worms offer reliable performance and long-lasting operation. Their compact size and lightweight design make them easy to integrate into a variety of applications, from medical equipment to industrial machinery.
Top product features:
- Ground and machined steel worms have a bore diameter of 5 mm with a tolerance of +/0.1 mm.
- The worms have a face width of 10 mm.
- The worms are made of carbon steel with a maximum teeth hardness of 194 HB.
Top product applications:
- Gearbox components
- Robotics and automation systems
- Precision machinery and equipment
Ground & Machined Worm, Bore Diameter 5 mm, Bore Diameter Tolerance +/- 0.1 mm, Bore Type Plain, Face Width 10 mm, Finish Black Oxide, Gear Shape W2, Material Carbon Steel, Maximum Teeth Hardness 194 HB, Metric Module Pitch 0.5, Number of Set Screws 1, Number of Starts 2, Outside Diameter 12 mm, Overall Length 18 mm, Pitch Diameter 11 mm
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.50
- Package Width: 0.50
- Package Height: 0.71
- Package Weight: 0.02
Product info last updated on February 28, 2026 11:54pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
