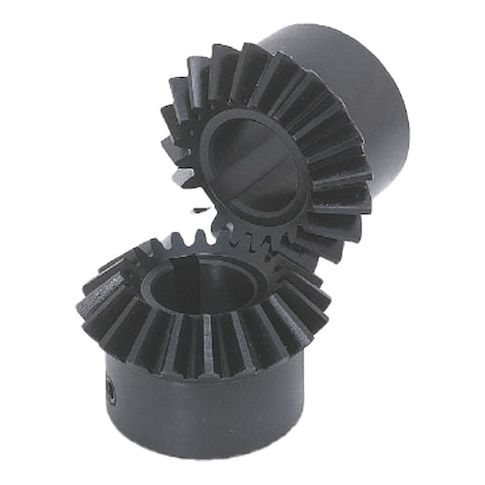

Finished Bore Steel Miter MPN:SMB2-20
Finished Bore Steel Miter
Bore Miter Gear, Bore Diameter 15 mm, Bore Diameter Tolerance H7, Bore Type Finished, Face Width 10 mm, Finish Black Oxide, For Shaft Angle 90 Degrees , Gear Shape BK, Hub Diameter 34 mm, Hub Projection 14 mm, Hub Type Hub with Set Screws, Includes Set Screw, Keyway Yes, Keyway Depth 2.3 mm, Keyway Width 5 mm, Material Carbon Steel, Material Grade S45C, Maximum Teeth Hardness 60 HRC, Metric Module Pitch 2, Minimum Teeth Hardness 50 HRC
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 1.50
- Package Weight: 0.29
Product info last updated on February 3, 2026 10:33pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
