Spiral Miter Gears MPN:SMS1.5-25R
Spiral Miter Gears

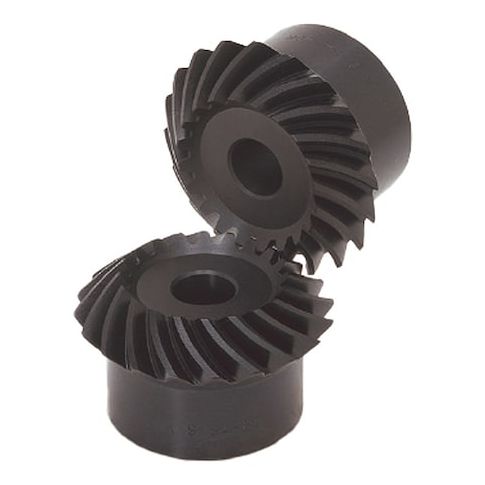

The Spiral Miter Gear from KHK USA is a high-precision component ideal for applications requiring precise gear engagement and smooth operation. With a bore diameter of 10 mm and a face width of 9 mm, this gear is designed for use in shafts with a 90-degree angle. Its carbon steel construction and black oxide finish provide durability and resistance to corrosion. Suitable for use in a variety of industries, including robotics, aerospace, and automotive, the Spiral Miter Gear offers precise gear engagement, smooth operation, and long-lasting performance. Its compact design makes it easy to integrate into tight spaces.
Top product features:
- Spiral shape allows for smooth and quiet operation in applications where traditional straight gears may cause vibration or noise.
- Bore diameter of 10 mm provides a secure fit for standard shafts, reducing the risk of gear slippage or failure.
- Carbon steel material with a maximum hardness of 60 HRC ensures durability and resistance to wear, extending the lifespan of the gear.
Top product applications:
- Automotive gearboxes
- Machine tools
- Robotics and automation systems
Spiral Miter Gear, Bore Diameter 10 mm, Bore Diameter Tolerance +/- 0.2 mm, Bore Type Plain, Face Width 9 mm, Finish Black Oxide, For Shaft Angle 90 Degrees , Gear Shape B3, Hub Diameter 30 mm, Hub Projection 11.5 mm, Material Carbon Steel, Material Grade S45C, Maximum Teeth Hardness 60 HRC, Metric Module Pitch 1.5, Minimum Teeth Hardness 50 HRC
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.55
- Package Width: 1.55
- Package Height: 0.88
- Package Weight: 0.24
Product info last updated on February 27, 2026 5:44am UTC
Category: Bearings, V-belts and Power Transmission Equipment
