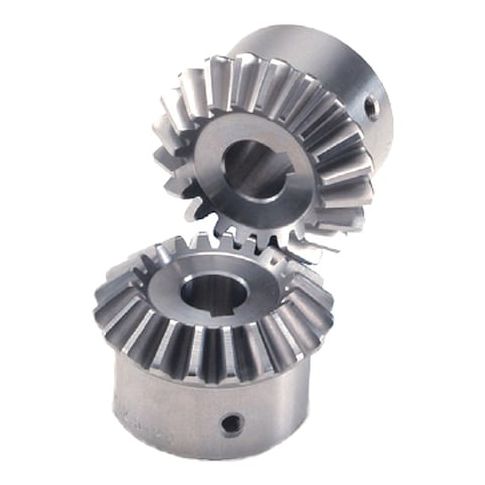

Stainless Steel Miters MPN:SUMA2-20
Stainless Steel Miters
This stainless steel miter gear is designed for precision applications where high torque and durability are required. Its 12mm bore diameter and H7 tolerance ensure a secure fit on shafts, while the 10mm face width provides a stable platform for gear engagement. The gear's 90-degree shaft angle and metric module pitch of 2 make it suitable for a variety of applications, including robotics, medical equipment, and industrial machinery. With a maximum hardness of 187 HB and a keyway for secure key attachment, this gear offers reliable performance and long lifespan, making it an ideal choice for demanding industries.
Top product features:
- Miter Gear for Shaft Angle 90 Degrees
- Keyway for Secure Key Attachment
- Hub with Set Screws for Easy Installation
Top product applications:
- Gearbox applications
- Precision machinery components
- Automotive transmission systems
Miter Gear, Bore Diameter 12 mm, Bore Diameter Tolerance H7, Bore Type Finished, Face Width 10 mm, For Shaft Angle 90 Degrees , Gear Shape BK, Hub Diameter 34 mm, Hub Projection 14 mm, Hub Type Hub with Set Screws, Includes Set Screw, Keyway Yes, Keyway Depth 1.8 mm, Keyway Width 4 mm, Material Stainless Steel, Material Grade SUS303, Maximum Teeth Hardness 187 HB, Metric Module Pitch 2
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.69
- Package Width: 1.69
- Package Height: 0.98
- Package Weight: 0.31
Product info last updated on February 16, 2026 12:37pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
