Angular Miter Gears MPN:SAM2-20120
Angular Miter Gears

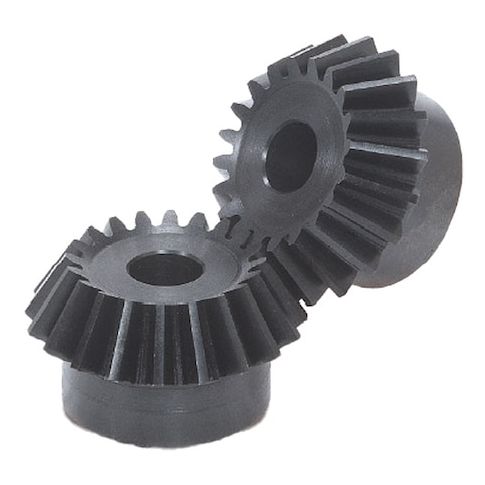

The Angular Miter Gear from KHK USA is a precision-engineered component designed for applications requiring high torque transmission at a 120-degree shaft angle. With a bore diameter of 12 mm and a face width of 6.5 mm, this gear is ideal for use in robotics, automation, and mechanical systems. Its black oxide finish provides corrosion resistance and durability. The gear's carbon steel construction and S45C material grade ensure high strength and resistance to wear. Suitable for use in a variety of industries, including aerospace, automotive, and medical device manufacturing, this gear offers reliable performance and long-lasting operation.
Top product features:
- The product has a bore diameter of 12 mm, making it suitable for use with standard shafts.
- The gear has a face width of 6.5 mm, providing a stable and secure connection to the shaft.
- The product is made from carbon steel with a maximum teeth hardness of 194 HB, ensuring durability and resistance to wear.
Top product applications:
- Automotive gearboxes
- Robotics and automation systems
- Medical device mechanisms
Angular Miter Gear, Bore Diameter 12 mm, Bore Diameter Tolerance H7, Bore Type Plain, Face Width 6.5 mm, Finish Black Oxide, For Shaft Angle 120 Degrees , Gear Shape B120, Hub Diameter 34 mm, Hub Projection 17.26 mm, Material Carbon Steel, Material Grade S45C, Maximum Teeth Hardness 194 HB, Metric Module Pitch 2
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.75
- Package Width: 1.75
- Package Height: 1.06
- Package Weight: 0.35
Product info last updated on March 31, 2026 6:38pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
