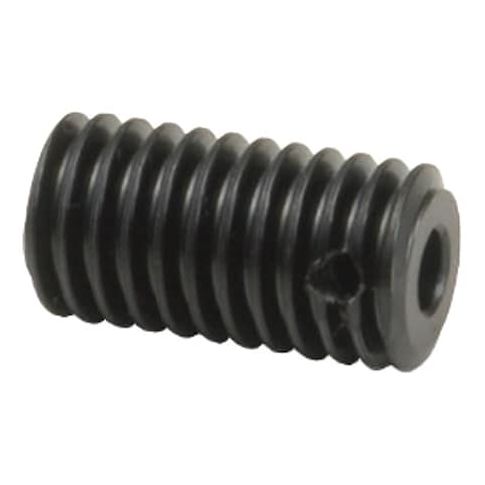

Ground and Machined Steel Worms MPN:SW1-R2
Ground and Machined Steel Worms
Our Ground and Machined Steel Worms from KHK USA are precision-engineered for a wide range of applications, including robotics, automation, and mechanical systems. With a bore diameter of 6 mm and a face width of 20 mm, these worms provide a high degree of accuracy and reliability. The black oxide finish ensures durability and resistance to corrosion. Suitable for applications where a high torque transmission is required, our worms can be used in conjunction with a variety of gears and shafts. Their compact design and precision machining make them an ideal choice for industries such as aerospace, automotive, and medical devices.
Top product features:
- Ground and machined steel worms with a plain bore type
- Has a black oxide finish
- Features a gear shape of W2 with a maximum teeth hardness of 194 HB
Top product applications:
- Automotive gearboxes
- Robotics and automation systems
- Medical device applications
Ground & Machined Worm, Bore Diameter 6 mm, Bore Diameter Tolerance +/- 0.1 mm, Bore Type Plain, Face Width 20 mm, Finish Black Oxide, Gear Shape W2, Material Carbon Steel, Maximum Teeth Hardness 194 HB, Metric Module Pitch 1, Number of Set Screws 1, Number of Starts 2, Outside Diameter 18 mm, Overall Length 32 mm, Pitch Diameter 16 mm
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.75
- Package Width: 0.75
- Package Height: 1.26
- Package Weight: 0.10
Product info last updated on February 26, 2026 10:00pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
