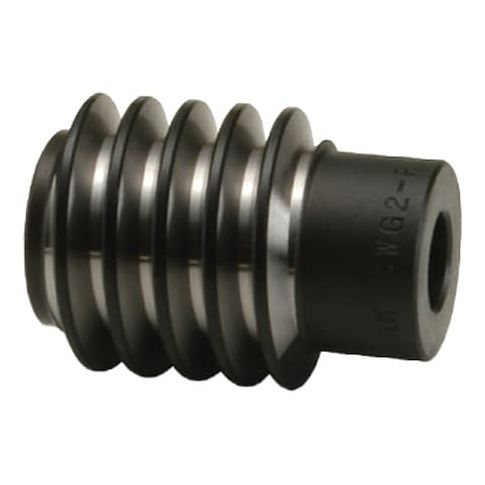

Ground and Machined Steel Worms MPN:SWG2.5-R1
Ground and Machined Steel Worms
Our Ground and Machined Steel Worms from KHK USA are precision-engineered for demanding applications. With a bore diameter of 15 mm and a face width of 45 mm, these worms are ideal for use in gearboxes, speed reducers, and other mechanical systems. The black oxide finish provides corrosion resistance, while the carbon steel construction ensures durability. With a maximum teeth hardness of 60 HRC and a minimum teeth hardness of 50 HRC, these worms offer reliable performance in a variety of applications, including aerospace, automotive, and industrial machinery. They can be used in both standard and custom designs.
Top product features:
- Ground and Machined Steel Worms have a Bore Diameter of 15 mm with a tolerance of +/0.2 mm, providing a precise fit for various applications.
- The worms have a Face Width of 45 mm, allowing for efficient engagement with other components.
- The worms are made from Carbon Steel with a Maximum Teeth Hardness of 60 HRC and a Minimum Teeth Hardness of 50 HRC, ensuring durability and resistance to wear.
Top product applications:
- Gearbox for a small robotic arm
- Power transmission in a precision machine tool
- Low-speed gear reduction in a medical device
Ground & Machined Worm, Bore Diameter 15 mm, Bore Diameter Tolerance +/- 0.2 mm, Bore Type Plain, Face Width 45 mm, Finish Black Oxide, Gear Shape W3, Hub Diameter 30 mm, Hub Projection 17 mm, Material Carbon Steel, Maximum Teeth Hardness 60 HRC, Metric Module Pitch 2.5, Minimum Teeth Hardness 50 HRC, Number of Starts 1, Outside Diameter 42 mm, Overall Length 65 mm, Pitch Diameter 37 mm
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.75
- Package Width: 1.75
- Package Height: 2.56
- Package Weight: 0.88
