Angular Miter Gears MPN:SAM2.5-20120
Angular Miter Gears

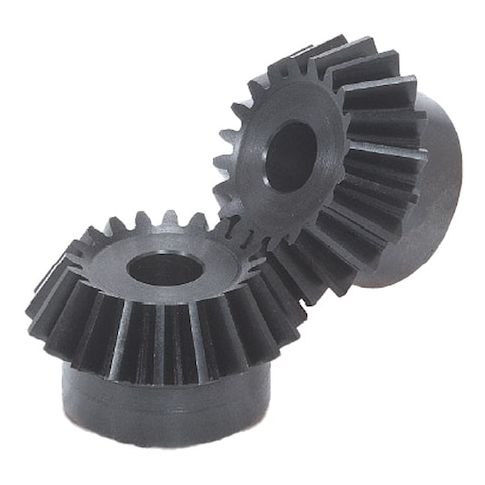

The Angular Miter Gear from KHK USA is a precision-engineered component ideal for applications requiring high torque transmission and precision positioning. With a bore diameter of 14 mm and face width of 8.5 mm, this gear is well-suited for use in robotics, automation, and precision machinery. The black oxide finish provides excellent corrosion resistance, while the carbon steel construction with a maximum hardness of 194 HB ensures durability. The gear's 120-degree shaft angle and metric module pitch of 2.5 make it suitable for a wide range of applications, including medical devices, industrial automation, and aerospace equipment.
Top product features:
- Angular Miter Gear design allows for a 120-degree shaft angle
- The gear has a plain bore type
- The gear has a black oxide finish
Top product applications:
- Gearbox for a 120-degree angle conveyor system
- Robot arm mechanism for precision assembly
- Precision machinery for the watchmaking industry
Angular Miter Gear, Bore Diameter 14 mm, Bore Diameter Tolerance H7, Bore Type Plain, Face Width 8.5 mm, Finish Black Oxide, For Shaft Angle 120 Degrees , Gear Shape B120, Hub Diameter 42 mm, Hub Projection 20.64 mm, Material Carbon Steel, Material Grade S45C, Maximum Teeth Hardness 194 HB, Metric Module Pitch 2.5
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.25
- Package Width: 2.25
- Package Height: 1.31
- Package Weight: 0.68
Product info last updated on February 4, 2026 4:19am UTC
Category: Bearings, V-belts and Power Transmission Equipment
