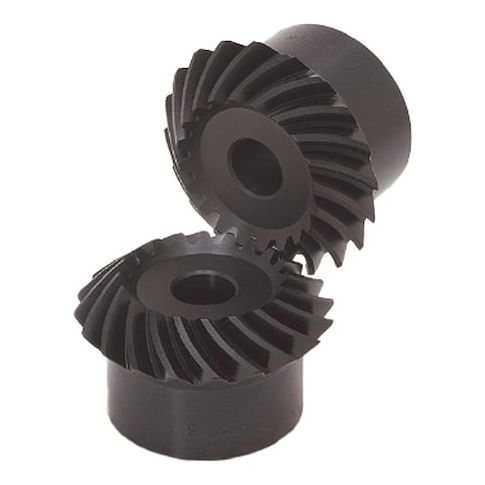

Spiral Miter Gears MPN:SMS1-20R
Spiral Miter Gears
The Spiral Miter Gear from KHK USA is a high-quality, precision-engineered component ideal for applications requiring precise shaft angle alignment. With a bore diameter of 6 mm and a face width of 5 mm, this gear is perfect for use in robotics, automation, and machinery manufacturing. The black oxide finish and carbon steel construction provide durability and resistance to wear and tear. Suitable for use in 90-degree shaft applications, this gear is a reliable choice for industries such as aerospace, automotive, and medical device manufacturing. Its compact size and lightweight design make it easy to integrate into complex systems.
Top product features:
- Spiral miter gear design allows for precise shaft angle of 90 degrees.
- Plain bore type enables smooth operation and reduces friction.
- Carbon steel material with a hardness range of 50-60 HRC provides durability.
Top product applications:
- Robotics and automation systems
- Gearboxes for precision machinery
- Power transmission systems for industrial equipment
Spiral Miter Gear, Bore Diameter 6 mm, Bore Diameter Tolerance +/- 0.1 mm, Bore Type Plain, Face Width 5 mm, Finish Black Oxide, For Shaft Angle 90 Degrees , Gear Shape B3, Hub Diameter 16 mm, Hub Projection 8 mm, Material Carbon Steel, Material Grade S45C, Maximum Teeth Hardness 60 HRC, Metric Module Pitch 1, Minimum Teeth Hardness 50 HRC
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.84
- Package Width: 0.84
- Package Height: 0.55
- Package Weight: 0.04
Product info last updated on February 4, 2026 9:31am UTC
Category: Bearings, V-belts and Power Transmission Equipment
