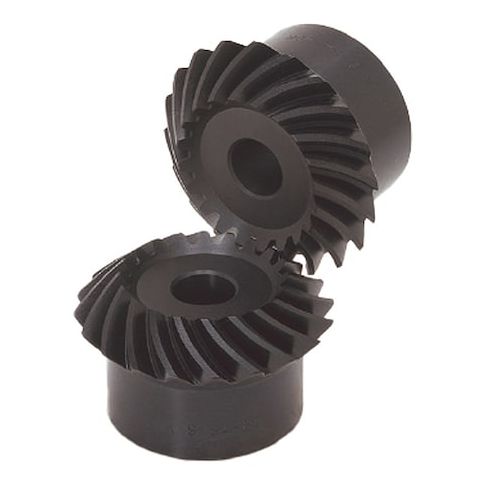

Spiral Miter Gears MPN:SMS1.5-20L
Spiral Miter Gears
The Spiral Miter Gear from KHK USA is a precision-engineered component ideal for applications requiring high accuracy and durability. Its spiral miter design allows for smooth and efficient power transmission, making it suitable for use in various industries such as robotics, automation, and machinery manufacturing. With a bore diameter of 8 mm and a face width of 8 mm, this gear offers a compact and lightweight solution for shaft angle applications of 90 degrees. Its black oxide finish provides corrosion resistance and a long lifespan, while its carbon steel construction ensures high strength and rigidity.
Top product features:
- Spiral design allows for smooth and quiet operation
- Black Oxide finish provides corrosion resistance
- Metric Module Pitch of 1.5 enables precise gear engagement
Top product applications:
- Spiral Miter Gears are used in precision machinery to transmit rotational motion at a 90-degree angle.
- They are used in power transmission systems for applications requiring high torque and low backlash.
- Spiral Miter Gears are used in gearboxes and other mechanical systems where a precise and efficient transfer of power is required.
Spiral Miter Gear, Bore Diameter 8 mm, Bore Diameter Tolerance +/- 0.2 mm, Bore Type Plain, Face Width 8 mm, Finish Black Oxide, For Shaft Angle 90 Degrees , Gear Shape B3, Hub Diameter 26 mm, Hub Projection 13 mm, Material Carbon Steel, Material Grade S45C, Maximum Teeth Hardness 60 HRC, Metric Module Pitch 1.5, Minimum Teeth Hardness 50 HRC
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.25
- Package Width: 1.25
- Package Height: 0.84
- Package Weight: 0.16
Product info last updated on February 12, 2026 6:33pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
