Ground and Machined Steel Worms MPN:SWG1-R1

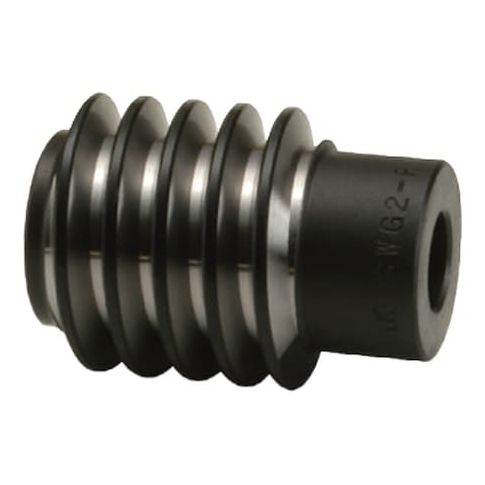

Ground and Machined Steel Worms
These precision Ground and Machined Steel Worms from KHK USA are ideal for applications requiring high torque and durability. Their plain bore type and metric module pitch of 1 make them suitable for use in a variety of mechanical systems, including gears, transmissions, and robotics. The black oxide finish provides corrosion resistance, while the carbon steel material ensures high strength and resistance to wear. With a maximum teeth hardness of 60 HRC, these worms are perfect for use in demanding industrial environments, such as manufacturing, packaging, and material handling. They are available in small quantities for prototyping and testing.
Top product features:
- Ground and Machined Steel Worms have a bore diameter of 8 mm with a tolerance of +/0.2 mm.
- The worms have a plain bore type and a face width of 20 mm.
- The worms are made of carbon steel with a maximum teeth hardness of 60 HRC and a minimum teeth hardness of 50 HRC.
Top product applications:
- Gearbox components
- Power transmission systems
- Precision machinery
Ground & Machined Worm, Bore Diameter 8 mm, Bore Diameter Tolerance +/- 0.2 mm, Bore Type Plain, Face Width 20 mm, Finish Black Oxide, Gear Shape W2, Material Carbon Steel, Maximum Teeth Hardness 60 HRC, Metric Module Pitch 1, Minimum Teeth Hardness 50 HRC, Number of Set Screws 1, Number of Starts 1, Outside Diameter 18 mm, Overall Length 32 mm, Pitch Diameter 16 mm
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.75
- Package Width: 0.75
- Package Height: 1.26
- Package Weight: 0.08
Product info last updated on January 31, 2026 8:55am UTC
Category: Bearings, V-belts and Power Transmission Equipment
