Eye Bolt With Shoulder, 5/8"-11, 1-3/4 in Shank, 1-3/8 in ID, Steel, Plain MPN:K2027-LT

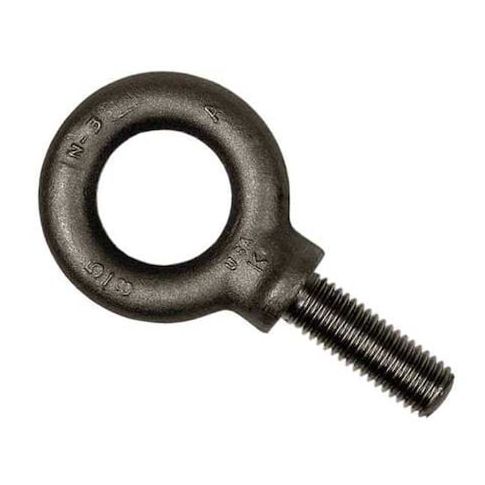

Eye Bolt With Shoulder, 5/8"-11, 1-3/4 in Shank, 1-3/8 in ID, Steel, Plain
The Eye Bolt With Shoulder from Ken Forging is a reliable and durable lifting solution for a variety of applications. Its 5/8in-11 thread size and 1-3/4 in shank length provide a secure connection point for lifting equipment, while the 1-3/8 in ID eye ensures smooth rope or chain passage. With a minimum tensile strength of 95,000 psi and a working load limit of 4,300 lb, this eye bolt is suitable for heavy-duty lifting tasks in industries such as construction, manufacturing, and shipping. Its compact design and easy installation make it an ideal choice for a range of applications, from rigging to material handling.
Top product features:
- Eye bolt with a shoulder provides a secure attachment point for lifting and rigging applications
- Lift with shoulder design allows for a wider range of attachment options and increased stability
- Inside diameter of 1 3/8 in provides a secure fit for rope or wire rope in lifting and rigging applications
Top product applications:
- Lifting heavy machinery or equipment
- Securing loads on trucks or trailers
- Attaching rigging or hoisting equipment
Machinery Eye Bolt, System of Measurement Inch, Eyebolt Type Lift with Shoulder, Material Steel, Finish Plain, Thread Size 5/8 In.-11, Thread Length 1 3/4 in, Shank Dia. 5/8 in, Shank Length 1 3/4 in, Shoulder Dia. 1.00 in to 1.06 in, Shoulder Length 9/32 in, Eye Inside Dia. 1 3/8 in, Eye Outside Dia. 2 1/2 in, Overall Length 4 57/64 in, Min. Tensile Strength 95,000 psi, Working Load Limit 4,300 lb
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 2.60
- Package Height: 1.20
- Package Weight: 0.70
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on January 16, 2026 11:01am UTC
Category: Screws and Bolts
