13 500 Lbs Rated Singleline Pull MPN:KW13122
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
505-130-KW13122
13 500 Lbs Rated Singleline Pull MPN:KW13122

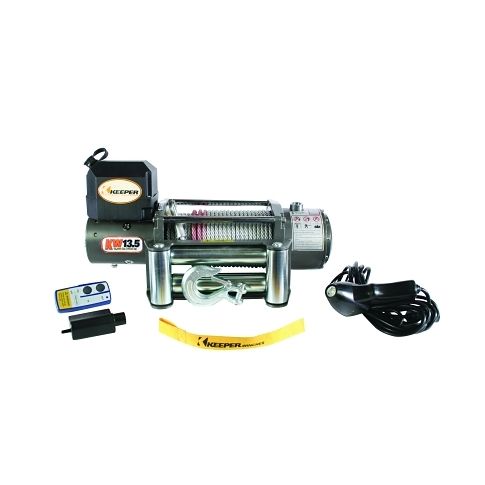

Heavy Duty Series 12 Volt DC Electric Winches, 13,500 lb Load Cap.
Additional Information
- UPC Code: 051643351363
- Country of Origin: PEOPLE'S REPUBLIC OF CHINA
- Special Order Item: Yes
- State Restricted: NO
- Minimum Order Quantity: 1
- Minimum Order UOM: EA
- Cost UOM: EA
- UOM Conversion: 1 EA = 1 EA
- Item Weight: 105
- Item Length: 23
- Item Width: 12.75
- Item Height: 12.5
- Item Cube: 3665.625
Attributes
- Amps [Nom]: 800 - 3800 A
- Cable Length [Nom]: 10-92 ft
- Cable/Wire Size [Nom]: 3/8 in
- Depth [Nom]: 6.3 in
- Drum Hub Diam: 2 1/2 in
- Finish: Powder Coated
- Full Load Speed Full Reel: 8 ft/min
- Gear Material: Metal
- Gear Type: Three Stage Planetary
- Gear:Ratio: 2650:4
- Height [Nom]: 8.6 in
- Length [Nom]: 21.3 in
- Load Cap. [Nom]: 13
- Material: Aircraft Grade Galvanized Wire Rope; Steel
- Power Cap. [Nom]: 5 3/5 hp
- Rated Cap.: 13
- Voltage [Nom]: 120 VDC
- Width [Nom]: 6.3 in
Features
- Lift and turn free spooling clutch and automatic mechanical full load brake
- 3-stage full metal planetary gear train with case hardened gears
- Integrated heavy duty sealed solenoid switching
- Handheld switch on 15' lead with integrated LED high density work light and handheld wireless remote control
- Galvanized wire rope with looped thimble, clevis hook with latch and red, end travel warning area
Product info last updated on April 22, 2026 3:47pm UTC
Category: HOISTS and WINCHES
