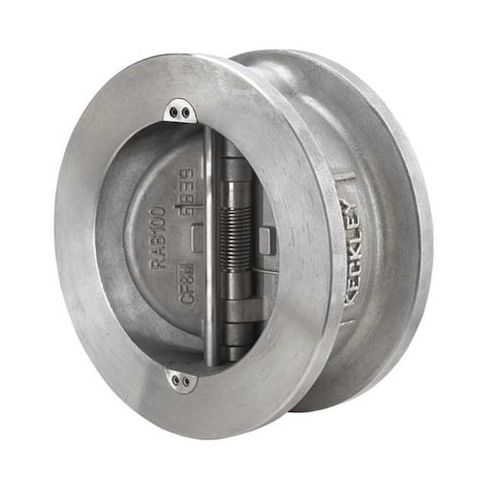

12" Stainless Steel Wafer Check Valve MPN:DD2R-36-364IX-912
This 12in Stainless Steel Wafer Check Valve from Keckley is a reliable and efficient solution for various industrial applications. Designed for inline use in horizontal or vertical configurations, it features a 316 stainless steel body and a Viton seal for maximum durability and resistance to corrosion. With a cracking pressure of 1.046 psi and a maximum water pressure of 275 psi at 100°F, it is suitable for use in water and steam systems. Its compact design and easy installation make it an ideal choice for a wide range of industries, including chemical processing, power generation, and oil and gas.
Top product features:
- 12in Stainless Steel Wafer Check Valve is designed for inline use
- Has a single flow design
- Is constructed with a 316 Stainless Steel body
Top product applications:
- Steam Distribution Systems
- Industrial Water Treatment Plants
- Power Generation Facilities
KECKLEY DD2R-36-364IX-912 is a 12 in stainless steel wafer check valve with a double disc mechanism for check-valve service in process piping. Specified for gas and liquid service, this valve installs inline between flanged connections and can be mounted horizontally or vertically. It features a 316 stainless steel body and check mechanism, FKM/Viton seat and seal materials, and an Inconel X-750 spring.
Key Features:
- Valve type: Check valve with inline wafer body design and double disc check mechanism.
- Size: 12 in nominal valve size with 12 in connections on both sides.
- Connection style: Flanged wafer x flanged wafer.
- Materials: 316 stainless steel body and check mechanism
- Inconel X-750 spring.
- Seal and seat: FKM/Viton seal and seat materials.
- Flow rating: 4,300 gpm with a Cv of 4,300.
- Cracking pressure: 1.046 psi.
- Pressure rating: 275 psi at 100 Degrees F maximum water pressure
- 275 psi maximum operating pressure.
- Temperature range: -20 Degrees F minimum operating temperature to 400 Degrees F maximum operating temperature.
- Mounting orientation: Horizontal or vertical.
- Standards: Meets multiple ASME, API, and MSS standards.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.10
- Package Width: 16.10
- Package Height: 7.10
- Package Weight: 172.00
