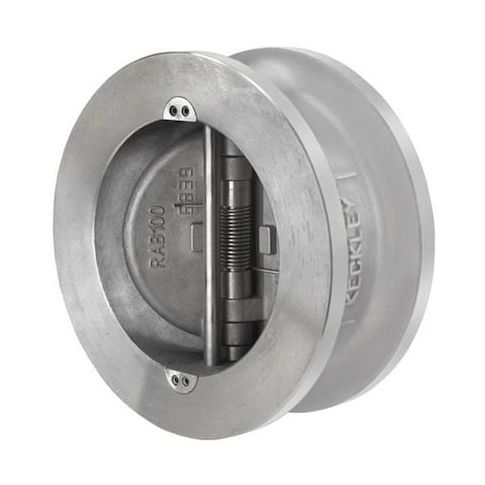

10" Carbon Steel Wafer Check Valve MPN:DD2R-CS-361IX-910
10" Carbon Steel Wafer Check Valve
KECKLEY DD Series model DD2R-CS-361IX-910 is a 10 in carbon steel wafer check valve with a double disc mechanism used in one-way flow applications in process piping systems. It is specified for gas and liquid service. The inline wafer body supports horizontal or vertical mounting and uses wafer-style end connections. The valve is configured to close in response to reverse flow conditions.
Key Features:
- 10 in nominal valve size with 10 in connections on both sides
- Carbon steel body with 316 stainless steel check mechanism
- Double disc check mechanism with single flow design
- Wafer connection on both sides
- connection type: Flanged Wafer x Flanged Wafer
- Buna-N seal and Buna-N seat material
- Cracking pressure: 1.046 psi
- Flow capacity: 26,000 gpm
- Cv: 2,600
- Maximum water pressure: 285 psi at 100 degrees F
- Maximum operating pressure: 275 psi
- Operating temperature range: -20 degrees F to 250 degrees F
- Spring material: Inconel X-750
- Standards: Meets multiple ASME, API, and MSS standards
- Overall length: 5.75 in
- width: 13 3/8 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 15.00
- Package Height: 17.00
- Package Weight: 106.00
