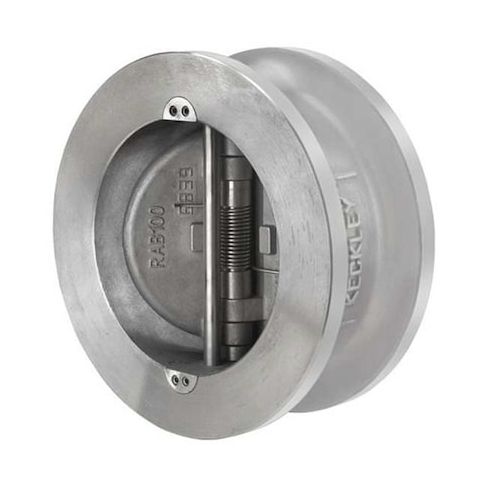

5" Carbon Steel Wafer Check Valve MPN:DD2R-CS-361IX-500
The 5in Carbon Steel Wafer Check Valve from Keckley is a reliable and efficient solution for various industrial applications. Designed for inline use, this check valve features a single flow design and is constructed from durable carbon steel for long-lasting performance. Suitable for horizontal and vertical mounting, it can handle water pressures up to 285 psi at 100°F, making it ideal for water treatment, chemical processing, and HVAC systems. With a flow rate of 495 gpm, this valve ensures smooth and uninterrupted fluid flow, minimizing pressure drops and reducing wear on downstream equipment.
Top product features:
- The valve is designed for inline wafer installation.
- It features a single flow design.
- The valve has a cracking pressure of 1.046 psi.
Top product applications:
- Water Treatment Plants
- Steam Power Plants
- Industrial Process Plants
KECKLEY DD2R-CS-361IX-500 is a 5 in carbon steel wafer check valve with an inline wafer body and double disc check mechanism. It is for process piping service with compatible gas and liquid media and is configured for one-way flow and reverse-flow checking. Mounting orientation: horizontal or vertical. It has a flow rating of 495 gpm and a cracking pressure of 1.046 psi.
Key Features:
- Valve type: Check valve with inline wafer body
- Size: 5 in nominal valve size with 5 in wafer connections on both sides
- Body material: Carbon steel
- Check mechanism: Double disc with 316 stainless steel mechanism material
- Seal and seat material: Buna-N
- Spring material: Inconel X-750
- Flow capacity: Cv 495
- flow rating 495 gpm
- Pressure ratings: 285 psi at 100 degrees F maximum water pressure
- 275 psi maximum operating pressure
- Temperature range: -20 degrees F minimum operating temperature to 250 degrees F maximum operating temperature
- Mounting orientation: Horizontal or vertical
- Standards: Meets multiple ASME, API, and MSS standards
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 9.00
- Package Height: 9.00
- Package Weight: 27.00
