Y Strainer, 1" Pipe, Socket Weld, Carbon Steel MPN:15SWY-CS045P34-GTI-SB7
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1612795

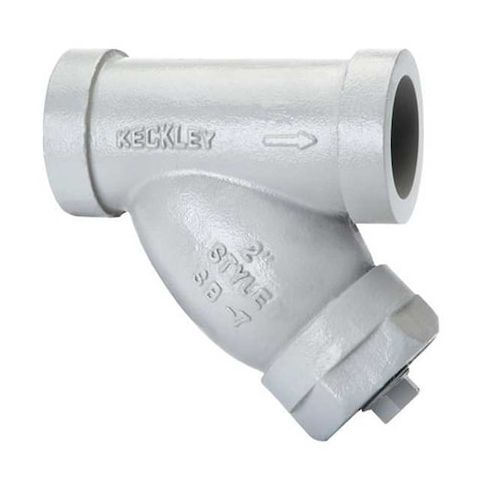

Y Strainer, 1" Pipe, Socket Weld, Carbon Steel
The Keckley Y Strainer is a reliable and versatile solution for various industrial applications. Suitable for use with gas, oil, steam, and water, this strainer ensures efficient flow while protecting equipment from debris and contaminants. Its 304 stainless steel screen provides long-lasting performance, while the carbon steel housing offers durability and resistance to high pressures. With a maximum pressure rating of 1,480 psi and a temperature rating of 838°F, this strainer is ideal for demanding environments. Its compact design and Cv flow factor of 30 gpm make it an excellent choice for a wide range of applications, including oil and gas, chemical processing, and power generation.
Top product features:
- Perforated screen with 0.0625 in holes for filtration
- Blow off port with 3/8 in connection for easy cleaning
- Carbon steel housing with socket weld connection for secure installation
Top product applications:
- Gas Line Filtration
- Oil Line Filtration
- Steam Line Filtration
Y Strainer, Pipe Size 1 in, Maximum Pressure at 100 deg F 1,480 psi, Length 4 5/8 in, Height 4 5/8 in, Blow Off Port 3/8 in, Screen Material 304 Stainless Steel, Perforated Screen Size 0.0625 in, Mesh Size Not Applicable, Housing Material Carbon Steel, Class 600, Cv Flow Factor 30 gpm, For Use With Gas, Oil, Steam, Water, Includes Screen Screen Included, Maximum Pressure 1,480 psi, Maximum Temperature 838 Degrees F, Micron Rating 1,143 micron, Port 1 Connection Size 1 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.00
- Package Height: 2.50
- Package Weight: 4.50
Product info last updated on January 20, 2026 12:03am UTC
Category: Filtration
