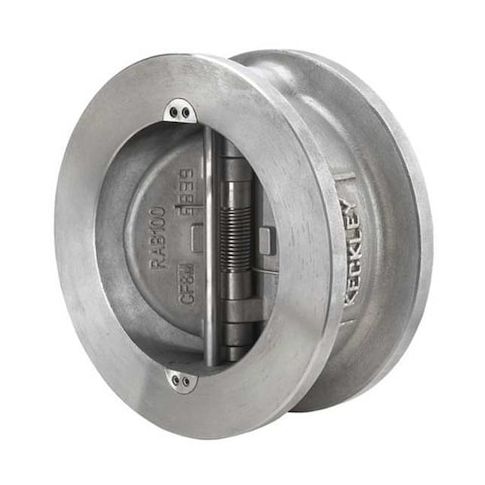

10" Stainless Steel Wafer Check Valve MPN:DD2R-36-364IX-910
The Keckley 10in Stainless Steel Wafer Check Valve is a reliable and efficient solution for various industrial applications. Designed for inline use, this valve features a single flow design and wafer body construction, making it ideal for use in piping systems where space is limited. The 316 stainless steel body provides excellent corrosion resistance, while the Viton seals and Inconel X-750 spring ensure long-lasting performance. Suitable for use in water and steam systems, this valve is perfect for applications in the chemical, oil and gas, and power generation industries, where high pressure and temperature requirements are common.
Top product features:
- 10in Stainless Steel Wafer Check Valve is designed for inline installation
- The valve features a single flow design with a wafer mechanism and body
- The valve is rated for 275 psi at 100 Degrees F and is designed for horizontal or vertical mounting
Top product applications:
- Steam System Applications
- Plumbing Applications
- Hydroelectric Power Plant Applications
KECKLEY DD2R-36-364IX-910 is a 10 in stainless steel wafer check valve with a double disc check mechanism for one-way flow control in process piping. It is designed for gas and liquid service and installs inline between flanged wafer connections. The valve can be mounted horizontally or vertically and is intended to restrict reverse flow in piping systems.
Key Features:
- 10 in nominal valve size with wafer connections on both sides
- 316 stainless steel body and 316 stainless steel check mechanism
- Double disc check mechanism with inline wafer body design
- For media: gas and liquids
- Flow capacity: 26,000 gpm
- Cv rating: 2,600
- Cracking pressure: 1.046 psi
- Maximum pressure: 275 psi at 100 degrees F
- Operating temperature range: -20 degrees F to 400 degrees F
- Seal material: FKM/Viton
- seat material: FKM/Viton
- Spring material: Inconel X-750
- Standards: Meets multiple ASME, API, and MSS standards
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 15.00
- Package Height: 17.00
- Package Weight: 106.00
