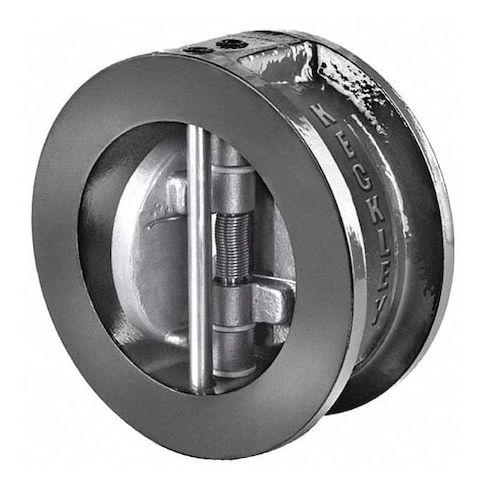

10" Cast Iron Wafer Check Valve MPN:DD1F-CI-34136-910
The Keckley 10in Cast Iron Wafer Check Valve is a reliable and efficient solution for various industrial applications. Suitable for use in horizontal or vertical orientations, this valve features a single flow design and is constructed from durable cast iron for long-lasting performance. With a maximum water pressure of 200 psi and a cracking pressure of 1.046 psi, it provides optimal control and protection against backflow. Ideal for use in water supply systems, the Keckley check valve offers superior sealing capabilities with Buna-N seals and a spring material made from Inconel X-750, ensuring consistent and reliable operation.
Top product features:
- The product is designed for inline installation.
- It has a single flow design.
- It has a flanged wafer x flanged wafer connection type.
Top product applications:
- Water treatment plants
- Industrial process control systems
- Power generation facilities
The KECKLEY DD1F-CI-34136-910 is a 10 in. cast iron wafer check valve with a double disc mechanism for one-way flow control in process piping. It is intended for gas and liquid service and installs in an inline wafer configuration between flanged connections. The valve has a 1.046 psi cracking pressure to limit reverse flow and can be mounted horizontally or vertically.
Key Features:
- Body material: Cast iron
- Check mechanism: Double disc with 304 stainless steel mechanism material
- Connection size: 10 in. x 10 in.
- Connection type: Flanged wafer x flanged wafer
- Side connections: Wafer
- Flow design: Single
- Flow capacity: 26,000 gpm
- Cv: 2,600
- Seal material: Buna-N
- Seat material: Buna-N
- Spring material: Inconel X-750 and 316 stainless steel
- Maximum water pressure: 200 psi at 150 degrees F
- Maximum operating pressure: 200 psi
- Mounting orientation: Horizontal or vertical
- Valve body style: Inline wafer
- Standards: Meets multiple ASME, API, and MSS standards
- Overall dimensions: 4.25 in. L x 13-3/8 in. W x 4-1/4 in. H
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.50
- Package Width: 15.20
- Package Height: 12.30
- Package Weight: 62.60
