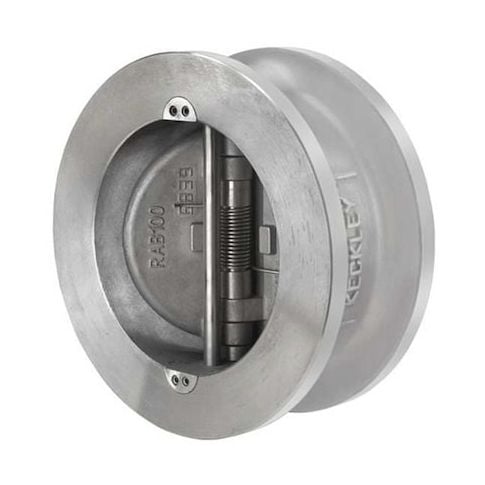

3" Carbon Steel Wafer Check Valve MPN:DD2R-CS-361IX-300
The Keckley 3in Carbon Steel Wafer Check Valve is a reliable and efficient solution for various industrial applications. Designed for inline use, this valve ensures smooth flow and prevents backpressure, making it ideal for water treatment, chemical processing, and HVAC systems. Its carbon steel construction and Buna-N seal provide durability and resistance to corrosion, while its Inconel X-750 spring ensures long-lasting performance. With a maximum water pressure of 285 psi and a flow rate of 170 gpm, this valve is suitable for a wide range of applications, including municipal water supply, industrial processes, and commercial plumbing.
Top product features:
- Carbon Steel construction provides durability and resistance to corrosion
- Buna-N seals ensure a tight shut-off and prevent leakage
- Inconel X-750 springs maintain a consistent opening and closing force
Top product applications:
- Oil and Gas Industry
- Industrial Process Control
- Water Treatment Plants
The KECKLEY DD2R-CS-361IX-300 is a 3 in. carbon steel wafer check valve with a double disc check mechanism for use in one-way flow applications in process piping systems. Rated for gas and liquid service, it installs inline between wafer-style flanged connections. Mounting positions: horizontal or vertical. The valve has a cracking pressure of 1.046 psi, a flow rating of 170 gpm, and a Cv of 170.
Key Features:
- Body material: Carbon steel.
- Check mechanism: Double disc with inline wafer body design.
- Connection size: 3 in. x 3 in.
- Connection type: Flanged wafer x flanged wafer.
- Check mechanism material: 316 stainless steel.
- Seal and seat material: Buna-N.
- Spring material: Inconel X-750.
- Flow rating: 170 gpm.
- Cv: 170.
- Cracking pressure: 1.046 psi.
- Maximum water pressure: 285 psi at 100 degrees F.
- Maximum operating pressure: 275 psi.
- Operating temperature range: -20 degrees F to 250 degrees F.
- Standards: Meets multiple ASME, API, and MSS standards.
- Overall length: 2.88 in.
- width: 5 3/8 in.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 6.00
- Package Height: 3.20
- Package Weight: 10.20
