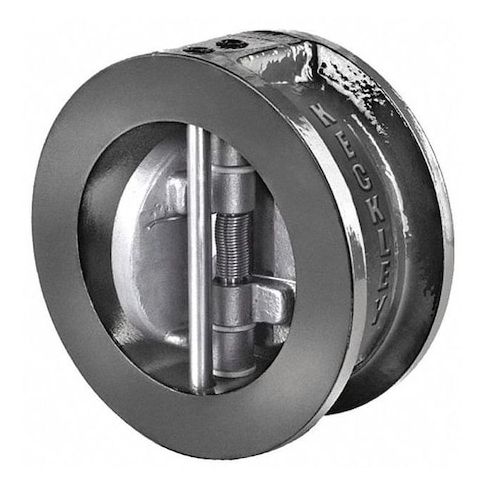

2" Cast Iron Wafer Check Valve MPN:DD1F-CI-34136-200

• KECKLEY DD1F-CI-34136-200 is a 2 in cast iron wafer check valve with a double disc check mechanism for process piping systems handling gas and liquids. This valve is configured for one-direction flow and reverse-flow checking. Its inline wafer body design supports horizontal or vertical mounting, with a 48 gpm flow rating and 1.046 psi cracking pressure.

  Key Features:

  • 2 in nominal valve size with wafer connections on both sides
  • Cast iron body with 304 stainless steel check mechanism
  • Double disc check mechanism in an inline wafer body style
  • Buna-N seal and seat materials
  • 316 stainless steel spring material
  • Maximum water pressure: 200 psi at 150 degrees F
  • Mounting orientation: horizontal or vertical
  • Flow rating: 48 gpm
  • Cv: 48
  • Compliance: Meets multiple ASME, API, and MSS standards
