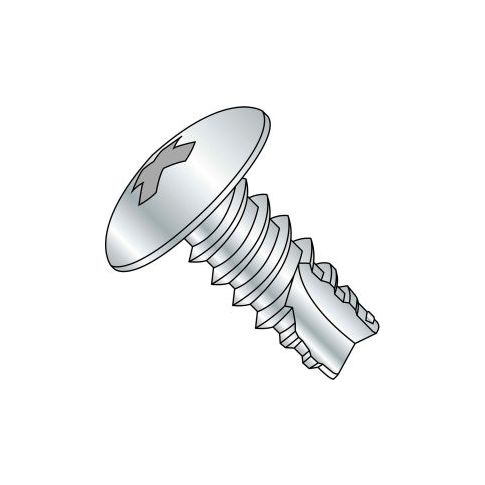

#8 x 1/4 Phillips Truss Thread Cutting Screw Type 25 Fully Threaded Zinc Bake - Pkg of 10000 08045PT
#8 x 1/4 Phillips Truss Thread Cutting Screw Type 25 Fully Threaded Zinc Bake - Pkg of 10000
These #8 x 1/4 Phillips Truss Thread Cutting Screws from Kanebridge are designed for applications requiring minimal clearance, such as attaching metal lathes to metal studs. The Type 25 fully threaded design provides excellent chip clearance and is suitable for use in plastics and other soft materials. The zinc-baked finish offers corrosion resistance, and the modified truss head provides a low-clearance bearing surface. Ideal for heavy-duty applications, these screws are a reliable choice for industries such as construction, manufacturing, and engineering. Their durability and versatility make them a valuable addition to any toolkit or inventory.
Top product features:
- Thread-cutting type-25 screws provide excellent chip clearance.
- Truss head screws offer low clearance and an extra large bearing surface.
- These screws are suitable for use in stainless material with a lower hardness by 10-20 rockwell hardness.
Top product applications:
- Attaching metal lathe to metal studs
- Steel used in molded or through holes in plastics and other soft materials
- Stainless material into which the screw is to cut threads
8x1/4 phillips truss thread cutting screw type 25 fully threaded zinc bake. Thread-cutting type-25 screws provide excellent chip clearance. Steel used in molded or through holes in plastics and other soft materials. Stainless material into which the screw is to cut threads should have a lower hardness by 10-20 rockwell hardness. Truss head screws are weaker than pan or round heads but preferred in applications where minimal clearance exists above the head. Modified truss heads offer low clearance and an extra large bearing surface. Commonly used to attach metal lathe to metal studs.
Additional Information
- UNSPSC: 31161512
- Brand: Kanebridge Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: NJ
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 0.16
- Package Width: 0.25
- Package Height: 0.16
- Package Weight: 25.00
Product info last updated on November 7, 2024 11:51am UTC
Category: Thread Cutting Screws
