Ball Joint Linkages MPN:6LXF2/A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G815193291
Ball Joint Linkages

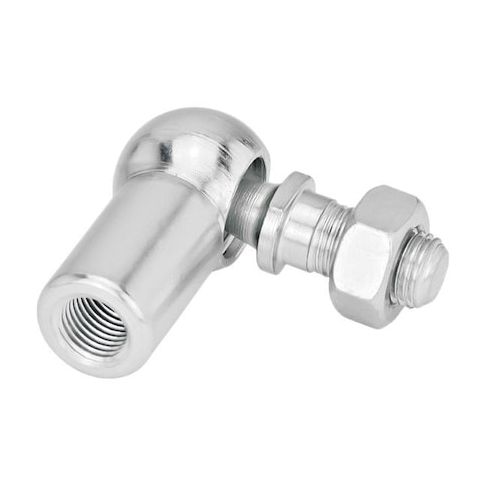

For applications requiring precise and durable ball joint linkages, JW Winco's Metric Ball Joint Linkage is a reliable choice. This linkage features a ball stud center length of 25 mm and a ball stud thread length of 12.5 mm, making it suitable for a variety of uses, including robotics, automation, and machinery. The M6x1.0 ball stud thread size and M6 shank thread size provide a secure connection. The alloy steel housing and steel ball and stud ensure high strength and durability. With a lead time of 4 days and a minimum order quantity of 2, this product is ideal for businesses requiring efficient and cost-effective solutions.
Top product features:
- Ball Stud Center Length 25 mm allows for precise positioning of the linkage.
- Left Hand Ball Stud Thread Direction enables the user to easily attach and detach the linkage from other components.
- Zinc Plated Housing Material Finish provides corrosion resistance and a durable finish.
Top product applications:
- Automotive Steering Systems
- Machine Tooling and Equipment
- Aerospace and Defense Equipment
Ball Joint Linkages, System of Measurement Metric, Ball Stud Center Length 25 mm, Ball Stud Thread Length 12.5 mm, Ball Stud Thread Size M6x1.0, Head Outside Diameter 14.8 mm, Shank Thread Length 11.5 mm, Shank Thread Size M6, Housing Material Alloy Steel, Shank Thread Direction Left Hand, Ball Diameter 14.8 mm, Ball Material Steel, Ball Stud Material Steel, Ball Stud Thread Direction Left Hand, Housing Material Finish Zinc Plated, Inner Ring Width 10 mm, Lubrication Openings Lubrication Fitting
Additional Information
- Country of Origin: IT
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 0.06
Product info last updated on February 4, 2026 4:12am UTC
Category: Bearings, V-belts and Power Transmission Equipment
