End Caps - Hygienic Design MPN:20.1-M24-74-E
End Caps - Hygienic Design

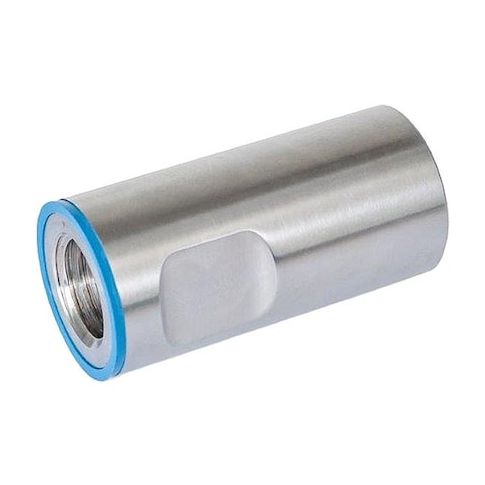

The Hygienic End Cap from JW Winco is a premium solution for applications requiring high standards of cleanliness and sanitation. Designed with a hygienic sleeve made of stainless steel and an EPDM seal, this end cap ensures a tight seal and prevents bacterial growth, making it ideal for use in food processing, pharmaceutical, and biotechnology industries. Its durable construction and wide temperature range (-40°C to 120°C) also make it suitable for use in harsh environments. With certifications from DGUV and EHEDG, this end cap meets the highest standards of quality and safety, providing peace of mind for manufacturers and operators alike.
Top product features:
- Hygienic design for easy cleaning and maintenance
- Stainless steel sleeve for durability and resistance to corrosion
- EPDM seal for effective temperature range of -40 to 120 degrees Celsius
Top product applications:
- Hygienic End Caps are used in the food and beverage industry to prevent contamination and ensure a safe and clean environment.
- Hygienic End Caps are used in the pharmaceutical industry to meet strict regulatory requirements and ensure the integrity of packaging and equipment.
- Hygienic End Caps are used in the laboratory equipment industry to provide a secure and sanitary seal for equipment and components.
Hygienic End Cap, Sleeve Material Stainless Steel, Seal Material EPDM, Material Grade 304, Seal Color Blue, Standards DGUV Certified, EHEDG Certified, RoHS, Width Across Flats 30 mm, Overall Diameter 36.8 mm, Thread Size M24, Overall Height 2.2 in, Inside Height 65 mm, Thread Length 30.5 mm, Seal Material - Maximum Temperature 120 Degrees C, Seal Material - Minimum Temperature -40 Degrees C
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 0.78
