Grainger Products MPN:1132-10-35-M20-A
Free Shipping
In Stock

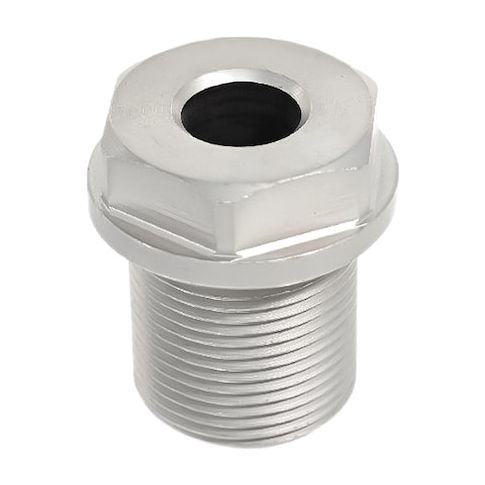

The J.W. WINCO 1132-10-35-M20-A stainless steel holding bushing is designed for high-pressure and corrosive applications, ensuring a reliable and tight fit in piping or machinery assemblies. Constructed from corrosion-resistant stainless steel grade 630, it provides mechanical stability and durability. With a threaded size of M20 and a compatible internal diameter of 12.2 mm, it facilitates smooth connections between pipes of different diameters. Suitable for use in various industries, including chemical processing, oil and gas, and pharmaceuticals, this bushing supports load stability and ensures efficient operation within specified load conditions.
Top product features:
- Constructed from stainless steel grade 630, which has specified mechanical and corrosion-resistant properties.
- Features matched internal and external threads, offering a pressure-rated transition between pipes of different diameters.
- Tightening torque specification of 130 N-m for proper installation within operational limits.
Top product applications:
- High-pressure pipe connections
- Threaded connections within piping or machinery assemblies
- Stainless steel threaded connections in corrosive environments
The J.W. WINCO 1132-10-35-M20-A is a stainless steel holding bushing rated for use in applications with high-pressure and corrosive conditions. It features matched internal and external threads, offering a pressure-rated transition between pipes of different diameters. Suitable for threaded connections within specified load conditions
- actual performance depends on proper installation and operating environment, it ensures a reliable, tight fit and supports load stability within piping or machinery assemblies.
Key Features:
- - Constructed from stainless steel grade 630, which has specified mechanical and corrosion-resistant properties.
- - Overall length of 46 mm with a threaded size of M20, compatible with matching external threads.
- - Inside diameter of 12.2 mm
- compatibility with GN 1130 series is based on product specifications.
- - Hex width of 24 mm and pin diameter of 10 mm, intended for fastening in accordance with assembly instructions.
- - Length under head is 29 mm
- nominal inside length is 35 mm.
- - Tightening torque specification of 130 N-m for proper installation within operational limits.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 0.20
