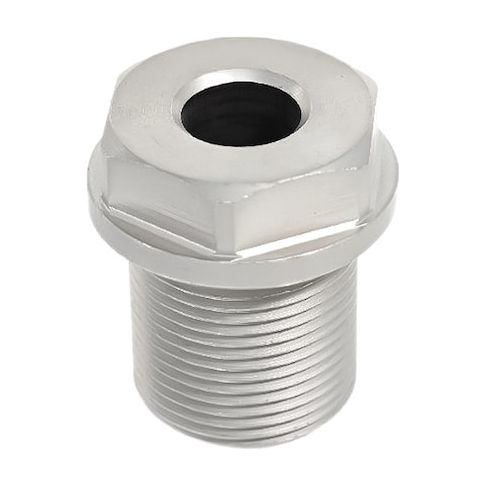

Holding Bushing, Stainless Steel, M16 Thread, 25 mm Length, 8 mm P in Diameter MPN:1132-8-25-M16-A

• The J.W. WINCO 1132-8-25-M16-A is a stainless steel holding bushing used to join and secure pipes or fittings of different diameters. It features matched internal and external threads with an M16 thread size and a base inside diameter of 9.8 mm. Its robust construction is rated for use in applications involving corrosive environments and high-pressure conditions, making it compatible with standard piping systems for appropriate connection. The bushing has a length under the head of 25 mm and an overall length of 37.5 mm, providing reliable connection points in various piping systems.

  Key Features:


  • - Material: Stainless Steel Grade 630, specified for corrosion resistance and mechanical strength.
  • - Base Inside Diameter: 9.8 mm, indicating the internal passage size.
  • - Thread Size: M16, specifying the external and internal thread designation.
  • - Length under Head: 25 mm, defining the section’s length excluding the threaded ends.
  • - Overall Length: 37.5 mm, measuring the total length of the bushing.
  • - Hex Width: 19 mm, the size of the hexagonal section used for tightening.
  • - Tightening Torque: 75 N-m, specified for installation within the product’s rated capabilities.
  • - Compatible with JW Winco brand and GN 1130 series components.
  • - Equipped with a Quick-Release Lifting Pin
  • intended for hoist ring use as specified by manufacturer guidelines.
