Gcyl Barricade RACK4X3 MPN:35156

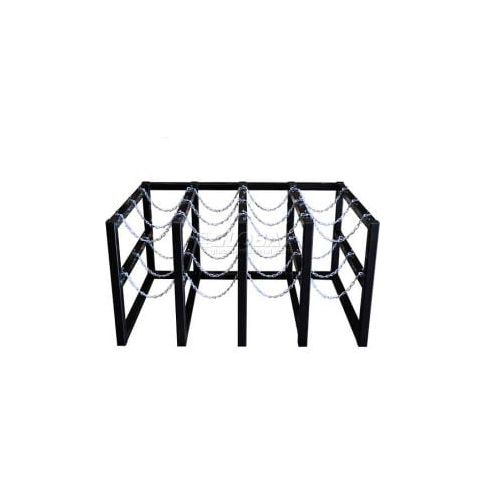

Cylinder tube rack 4 wide x 3 deep 58"w x 38"d x 30"h12 cylinder capacity ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" holds twelve cylinders in the vertical position from 4.0 to 12.0 inch diameter all steel finishing packaging and labor made 100 in the usa and canada constructed from .125 thick 2.0 x 2.0 square steel tube welded grade astm a-500 full perimeter welded and sealed all junction points. Tops ground smooth and capped with hdpe polyethylene caps powder painted black semi gloss with uv inhibitors and electro-deposition base coat plated steel chain snaps #2/0 twist loop plated steel chain with welded links included as means of support for cylinders (two per cylinder station) floor mounting holes included on lower tube structure have .531 inch diameter. For seismic installations s4 rated anchor bolts 3/8 inch diameter by 5 inch long are recommended (not included). Units qualify for seismic zone 4 construction and applications. Racks meet or exceed nfpa ufc osha cga standards for storage of compressed gas cylinders dimensions 58w. X 38d. X 30h. Weight 294 lbs. Ships via freight class 92.5 shipping dimensions (on pallet) 60w. X 40d. X 44h. Shipping weight 348 lbs.
