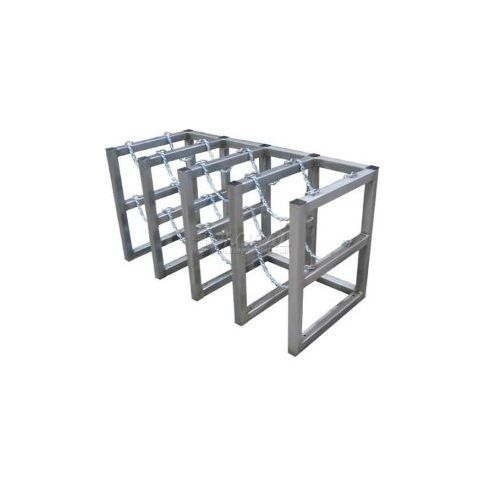

Stainless Steel Cylinder Tube Rack 4 Wide x 2 Deep 58"W x 26"D x 30"H8 Cylinder Cap. 35154

Stainless steel cylinder tube rack 4 wide x 2 deep 58"w x 26"d x 30"h8 cylinder capacity ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" holds eight cylinders in the vertical position from 4.0 to 12.0 inch diameter all steel finishing packaging and labor made 100 in the usa and canada constructed from .125 thick 2.0 x 2.0 square stainless steel tube welded type 304 full perimeter welded and sealed all junction points. Tops ground smooth and capped with hdpe polyethylene caps plated steel chain snaps stainless steel type 316 chains and chain snaps 2 per cylinder station floor mounting holes included on lower tube structure have .531 inch diameter. For seismic installations s4 rated anchor bolts 3/8 inch diameter by 5 inch long are recommended (not included) units qualify for seismic zone 4 construction and applications. Racks meet or exceed nfpa ufc osha cga standards for storage of compressed gas cylinders dimensions 58w. X 26d. X 30h. Weight 249 lbs. Shipping dimensions (on pallet) 60w. X 40d. X 56h. Shipping weight 304 lbs. Ships via freight class 92.5
