Electric Actuator, 210 in.-lb., -4 to 122 MPN:M9124-JGA-2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8987465
Electric Actuator, 210 in.-lb., -4 to 122

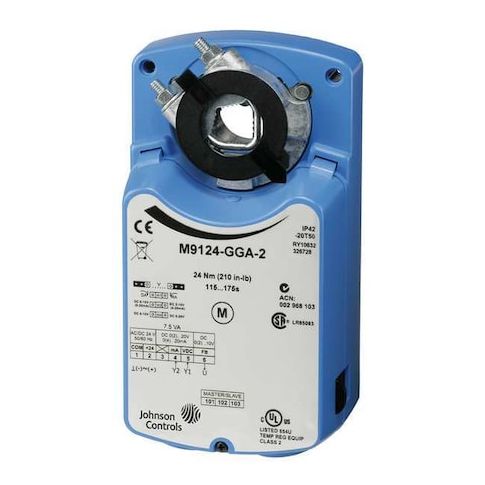

The Johnson Controls Electric Actuator is a versatile and reliable solution for building automation systems. Designed for use with dampers and valves, this actuator provides precise control and flexibility in a range of applications. With a rated torque of 210 in-lb and a 0-10V DC output signal, it can be easily integrated into existing systems. The actuator's spring return and non-spring return options offer added convenience and customization. Ideal for use in commercial and industrial settings, this actuator is a reliable choice for HVAC, lighting, and security systems, providing efficient and precise control for optimal performance.
Top product features:
- Self-centering clamping shaft allows for precise and secure valve operation.
- Floating point signal type enables accurate and flexible control of the valve.
- Spring return and non-spring return options provide flexibility in system design and operation.
Top product applications:
- Damper and Valve Application
- Building Automation System
- Valve Application
Actuator, Valve Application Damper and Valve, Signal Type Floating Point, Rated Torque 210 in-lb, Input Voltage 24V AC/DC, Output Signal 0 to 10V DC, Electrical Connection Type Plug-In, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP42, Spring Return Non-Spring Return, Time to Close 175 sec, Shaft Type Self-Centering Clamping, Shaft Rotation CW/CCW, Stroke Degree 0 to 90 Degrees , Mounting Type Direct Mount
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.50
- Package Weight: 2.90
Product info last updated on February 1, 2026 8:54pm UTC
Category: HVACR and Appliance Controls
