Electric Actuator, 70 in.-lb.-40 to 140 MPN:M9208-GGC-3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7202727
Electric Actuator, 70 in.-lb.-40 to 140

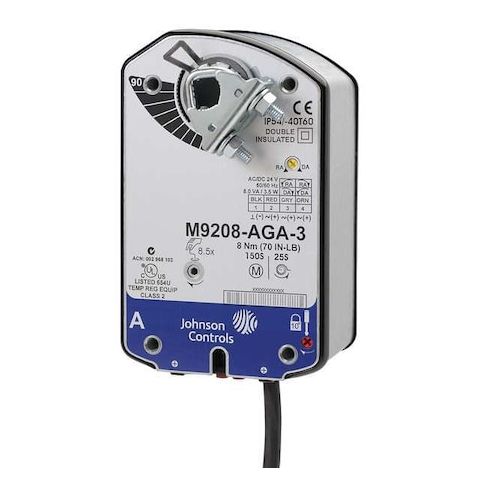

This electric actuator from Johnson Controls is designed for use in building automation systems, providing precise control over dampers and valves. With a rated torque of 70 in-lb and a spring return feature, it ensures smooth and reliable operation. Its proportional signal type and self-centering clamping shaft make it ideal for applications where precise control and low maintenance are essential. Suitable for use in environments up to 140°F, this actuator is perfect for commercial and industrial settings, including HVAC systems, air quality management, and temperature control. Its compact design and easy mounting make it a convenient addition to any building automation system.
Top product features:
- Proportional signal type allows for precise control of the actuator's movement
- Spring return feature enables the actuator to automatically return to its original position after being moved
- Self-centering clamping shaft design ensures secure and consistent operation
Top product applications:
- Building Automation Systems
- Valve Application
- Damper Application
Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 70 in-lb, Input Voltage 24V AC/DC, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 150 sec, Shaft Type Self-Centering Clamping, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.50
- Package Width: 6.50
- Package Height: 3.70
- Package Weight: 4.35
Product info last updated on January 21, 2026 6:20pm UTC
Category: HVACR and Appliance Controls
