Current Sensing Relay, Split Core, 12VAC MPN:CSDSC-C50100L3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6560220

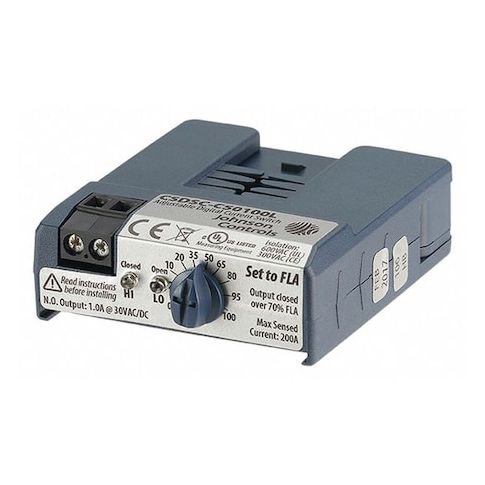

Current Sensing Relay, Split Core, 12VAC
The Johnson Controls Current Sensing Relay is a versatile and reliable solution for monitoring and controlling electrical currents in various applications. This split-core relay can be easily mounted on a surface and is designed to sense overcurrent and undercurrent conditions, providing a reliable trip point adjustment from 0.5 to 150 A. With its SPST-NO contact form and adjustable trip point, it's ideal for use in industrial, commercial, and residential settings, such as in power distribution systems, motor control circuits, and lighting control systems. Its compact design and LED status indicator make it a convenient and efficient solution for monitoring and controlling electrical currents.
Top product features:
- Current sensing capability monitors parameters such as overcurrent and undercurrent.
- SPST-NO contact form allows for single-pole single-throw normally open switching.
- Adjustable trip point allows the user to set a specific current rating for the relay.
Top product applications:
- Industrial Automation Systems
- Motor Protection and Control
- Power Distribution and Monitoring
Current Sensor Relay, Contact Form SPST-NO, Contact Rating (AC) 10 A @ 125V, Contact Rating (DC) 1 A @ 30V, Core Type Split, Current Rating 100 A, Input Voltage 12V AC, Monitored Parameters Overcurrent, Undercurrent, Mounting Style Surface, Trip Point 0.5 to 150 A, Trip Point Type Adjustable, Adjustment Method Switch, Electrical Connection Terminal Strip, Sensing Hole Diameter 0.75 in, Status Indicator LED Indicator, Wire Gauge 14 AWG, 24 AWG, Body Depth 2.23 in, Body Height 2.5 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 0.25
Product info last updated on March 16, 2026 11:42pm UTC
Category: Industrial Electrical Controls and Automation
