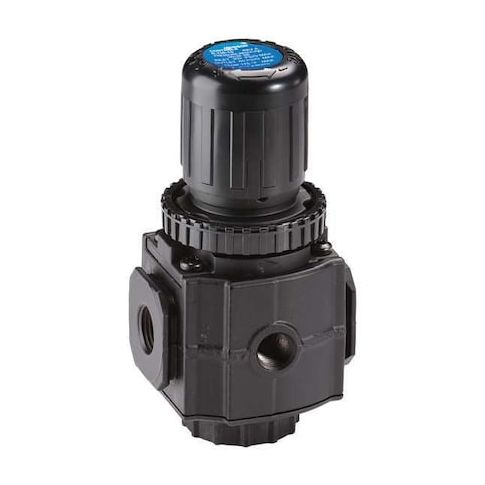

Air Pressure Reducing Valve, 3/8 MPN:R-130-15
Air Pressure Reducing Valve, 3/8
The Johnson Controls Air Pressure Reducing Valve is a reliable and efficient solution for managing compressed air in various industrial and commercial settings. This valve reduces air pressure to a safe and optimal level, preventing damage to equipment and promoting smooth operation. With a maximum flow rate of 20 cfm and operating pressure of 300 psi, it's suitable for a range of applications, including pneumatic systems, air tools, and equipment. Its compact design and easy-to-use knob make it a convenient addition to any air line system. Ideal for use in manufacturing, construction, and maintenance settings.
Top product features:
- Reduces high air pressure to a safe and usable level for downstream applications
- Regulates air flow to a maximum of 20 cubic feet per minute
- Operates at pressures up to 300 psi and temperatures up to 175 degrees Fahrenheit
Top product applications:
- Air pressure reducing valve can be used in pneumatic systems to regulate air pressure to a specific level for applications such as pneumatic tools and equipment.
- This valve can be used in air line systems to reduce the pressure of compressed air to a level that is safe for use with sensitive equipment.
- The air pressure reducing valve can be used in industrial settings to regulate the pressure of compressed air to a level that is suitable for use with pneumatic cylinders and other equipment.
Compressed Air Regulator, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 20 cfm, Maximum Operating Pressure 300 psi, Maximum Operating Temperature 175 Degrees F, Pressure Gauge Included No, Adjustment Mechanism Knob, Overall Width 2 3/4 in, Adjustment Location Top, System Location Air Line, Series R-130, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 3/8 in, Air Outlet Type NPT, Body Material Zinc Die-Cast, For Fluid Type Air, For Substance Type Air
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 3.30
- Package Height: 2.90
- Package Weight: 1.47
Product info last updated on February 22, 2026 5:01pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
