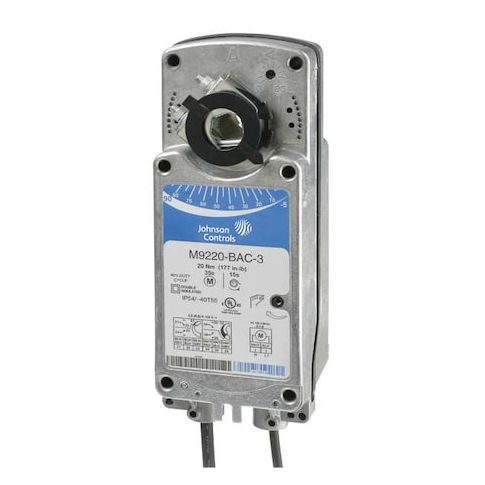

Electric Actuator, 24 to 57 sec.120VAC MPN:M9220-BAA-3
Electric Actuator, 24 to 57 sec.120VAC
The Johnson Controls Electric Actuator is a versatile and reliable solution for various applications, including building automation systems. Designed for use with dampers and valves, this actuator offers a spring return feature, allowing for easy operation and minimizing the risk of damage. With a rated torque of 177 in-lb and a time to close of 57 seconds, it provides smooth and efficient control. Compatible with NEMA rating 2 and IP54, it can withstand harsh environments and ensure optimal performance. Ideal for use in commercial and industrial settings, this actuator is perfect for applications requiring precise control and reliability.
Top product features:
- Spring Return
- Self-Centering Clamping Shaft Type
- 120V AC Input Voltage
Top product applications:
- Damper Application
- Valve Application
- Building Automation System Compatible
Actuator, Valve Application Damper and Valve, Signal Type On/Off, Rated Torque 177 in-lb, Input Voltage 120V AC, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 57 sec, Shaft Type Self-Centering Clamping, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 131 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.70
- Package Width: 6.40
- Package Height: 3.60
- Package Weight: 8.08
Product info last updated on February 24, 2026 11:10am UTC
Category: HVACR and Appliance Controls
