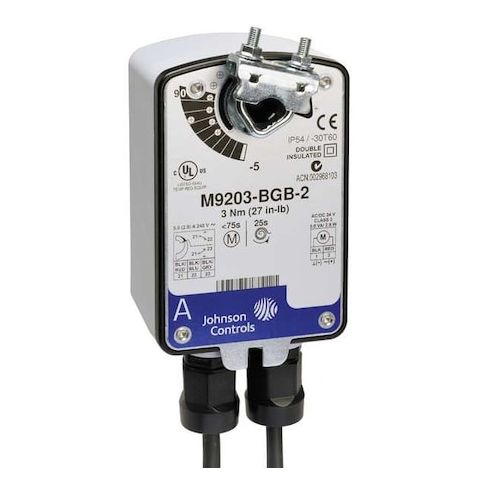

Electric Actuator, 27 in.-lb., -22 to 140 MPN:M9203-BGB-2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5080354
Electric Actuator, 27 in.-lb., -22 to 140
This Electric Actuator from Johnson Controls is a reliable solution for building automation systems, providing precise control and consistent performance. Suitable for valve applications, such as damper control, it offers a rated torque of 27 in-lb and a spring return feature for automatic reset. With a compact design and self-centering clamping shaft, it can be easily integrated into various systems. Its compatibility with building automation systems and NEMA rating of 2 ensure durability and safety in harsh environments. Ideal for use in commercial and industrial settings, this actuator provides efficient control and reliability in a compact package.
Top product features:
- Self-centering clamping shaft provides secure and consistent valve control
- SPDT contact form allows for on/off switching and reliable electrical connections
- Spring return mechanism enables quick and automatic return to original position after activation
Top product applications:
- Building Automation Systems
- Valve Applications
- Damper Control
Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 27 in-lb, Input Voltage 24V AC/DC, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 60 sec, Shaft Type Self-Centering Clamping, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.70
- Package Width: 6.60
- Package Height: 3.70
- Package Weight: 3.10
Product info last updated on February 6, 2026 11:35am UTC
Category: HVACR and Appliance Controls
