Electric Actuator, 24 to 57 sec.24VAC/DC MPN:M9220-BGC-3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5076565
Electric Actuator, 24 to 57 sec.24VAC/DC

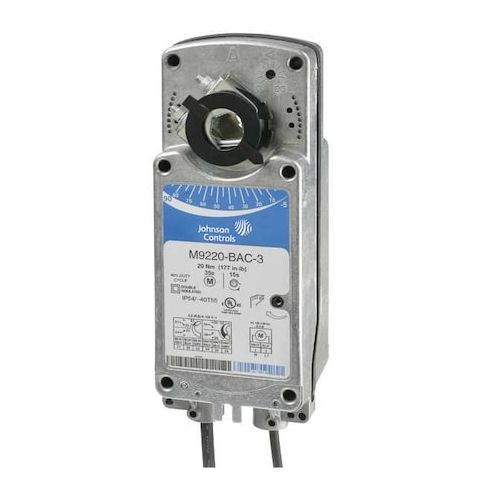

This electric actuator from Johnson Controls is designed for use with building automation systems, providing precise control over dampers and valves. With a rated torque of 177 in-lb and a time to close of 57 seconds, it offers reliable and efficient operation. The actuator's spring return feature ensures consistent performance, even in the event of a power outage. Suitable for a variety of applications, including commercial and industrial settings, this electric actuator is ideal for use in HVAC systems, data centers, and other environments where precise temperature control is critical. Its compact design makes it easy to install and integrate.
Top product features:
- Self-centering clamping shaft design allows for precise and consistent actuation.
- Spring return feature enables the actuator to return to its original position automatically.
- Actuator can rotate 90 degrees in both clockwise and counterclockwise directions.
Top product applications:
- Damper Actuation
- Valve Actuation
- Building Automation System Compatible
Actuator, Valve Application Damper and Valve, Signal Type On/Off, Rated Torque 177 in-lb, Input Voltage 24V AC/DC, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 57 sec, Shaft Type Self-Centering Clamping, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 131 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.80
- Package Width: 6.40
- Package Height: 3.70
- Package Weight: 7.34
Product info last updated on February 3, 2026 12:38pm UTC
Category: HVACR and Appliance Controls
