Line Voltage Mechanical Thermostat, Heat or Cool, 100 to 170F, Screwdriver, 120 to 600V AC, 1C, 1H MPN:A70KA-1C
Line Voltage Mechanical Thermostat, Heat or Cool, 100 to 170F, Screwdriver, 120 to 600V AC, 1C, 1H

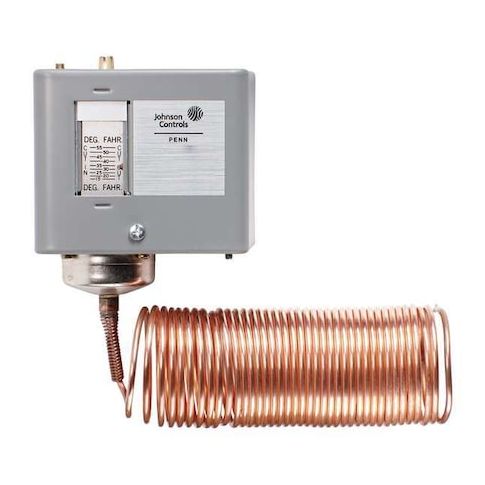

This Johnson Controls Line Voltage Mechanical Thermostat is a reliable and efficient solution for temperature control in a variety of applications. Suitable for use in heating and cooling systems, it provides precise temperature control between 100 and 170°F. With a robust design and ability to handle voltages of 120 to 600V AC, it's perfect for commercial or industrial settings. The thermostat also features remote sensing capability and a built-in bulb, making it easy to install and monitor. Its compact size and programmable-free design make it ideal for use in offices, retail spaces, and other high-traffic areas.
Top product features:
- Line Voltage Mechanical Thermostat controls temperature between 100 to 170F.
- Thermostat Switch Type DPST provides a two-way control option.
- Remote Sensing Capability allows for accurate temperature reading.
Top product applications:
- Residential heating and cooling systems
- Commercial building temperature control systems
- Industrial process temperature control systems
Line Volt Mechanical Tstat, Thermostat Switch Type DPST, Thermostat Control Range 100 Degrees to 170 Degrees F, Thermostat Voltage 120 to 600VAC, Full Load Amps @ 120VAC 16A Main, 6A Aux, Full Load Amps @ 240VAC 8A Main, 3A Aux, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 2, Differential 8 Degrees F, Height 3-1/4 In., Width 4 In., Depth 2-3/32 In.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.20
- Package Width: 5.90
- Package Height: 2.70
- Package Weight: 2.10
Product info last updated on January 26, 2026 3:36am UTC
Category: HVACR and Appliance Controls
