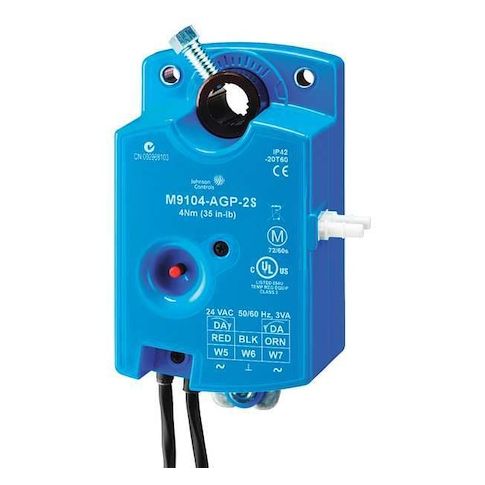

Electric Actuator, Cable, Floating MPN:M9104-AGP-2S
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0314170
Electric Actuator, Cable, Floating
The Johnson Controls Electric Actuator, Cable, Floating is a reliable and efficient solution for building automation systems. Its 35 in-lb rated torque and 20-30V AC input voltage make it suitable for a wide range of applications, including damper control. The actuator's self-centering shaft and 93-degree stroke degree provide precise control and flexibility. With a maximum operating temperature of 125°F and NEMA rating 1, it can withstand harsh environments. The actuator is ideal for use in commercial and industrial settings, offering benefits such as energy efficiency, reduced maintenance, and improved system performance. It is also compatible with various building automation systems.
Top product features:
- Self-centering shaft for precise positioning and reduced wear
- Spring return for automatic return to original position after release
- Shaft rotation in both clockwise and counterclockwise directions for increased flexibility
Top product applications:
- Building Automation System
- Valve Application Damper
- Signal Type Floating Point
Actuator, Valve Application Damper, Signal Type Floating Point, Rated Torque 35 in-lb, Input Voltage 20 to 30V AC, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 1, IP Rating IP42, Spring Return Non-Spring Return, Time to Close 60 sec, Shaft Type Self-Centering, Shaft Rotation CW/CCW, Stroke Degree 93 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 125 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 4.70
- Package Height: 4.70
- Package Weight: 1.85
Product info last updated on January 14, 2026 4:58pm UTC
Category: HVACR and Appliance Controls
