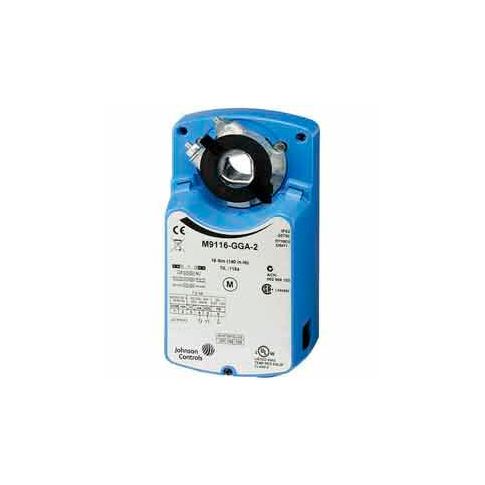

Johnson Controls Damper Actuator - M9116-GGA-2 M9116-GGA-2

Features ul stylemargin-top0px; padding-top 5px; padding-bottom 5px; simple direct coupling reduces installation and commissioning time while improving reliability by eliminating damper linkages robust 140 lb-in (16 nm) torque rating rotation range 0 to 90° in 5° increments mechanically limited to 93° fits 3/8 to 3/4 (10 to 20 mm) round shaft 3/8 to 5/8 (10 to 16 mm) square shaft; 1 (25.4 mm) diameter jackshaft with m9000-154 adapter on-off floating and proportional control inputs meet the needs of most applications output position feedback provides simple closed-loop control with accurate position sensing master/slave operation allows synchronized control for two actuators stacked for tandem applications - doubles rated torque output electronic stall detection ensures higher reliability by deactivating the actuator motor when a stall condition is detected jumper selectable dc 0(2).10 v or dc0(4).20 ma proportional control zero and span adjustment (hgx models) allows sequential operation of dampers from a single input signal of dc 0(2).10 v dc 0(4).20 v or dc 0(4).20 ma jumper-selectable rotation direction and manual gear release simplify installation setup and field adjustments 2-spdt optional auxiliary switches 1/2 npt threaded housing provides easy connection for electrical fittings manual gear release simplifies damper /valve setup and commissioning -4 to 122°f (-20 to 50°c) ambient temperature range rated for 60000 full stroke cycles ul listed csa certified ce mark
