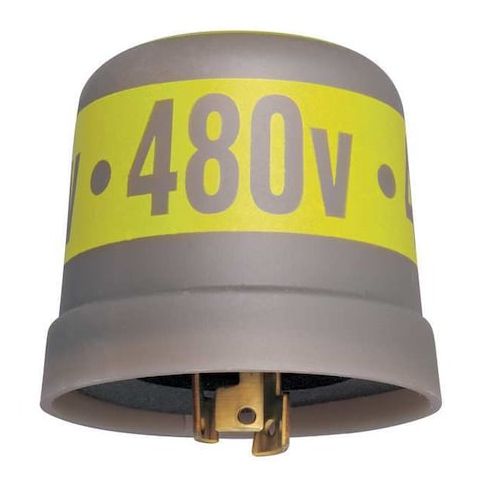

HID, Incandescent Photocontrol, 7, 200 W, Gray/Yellow, 90 sec Max, 30 sec Min MPN:LC4535LA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4297377
HID, Incandescent Photocontrol, 7, 200 W, Gray/Yellow, 90 sec Max, 30 sec Min
Automate your lighting control with the Intermatic HID, Incandescent Photocontrol, a reliable and efficient solution for commercial and residential applications. This photocontrol device is designed to turn lights on at dusk and off at dawn, optimizing energy usage and extending the lifespan of your lighting system. With a maximum wattage of 7,200 and a range of -20 to 104 degrees Fahrenheit, this device is perfect for outdoor and indoor use. Suitable for applications such as parking lots, walkways, and building facades, this photocontrol ensures consistent and reliable lighting control, reducing energy waste and maintenance costs.
Top product features:
- Turn-lock mounting for secure installation
- Adjusts between 0.5 and 15 foot-candles to control lighting based on ambient light levels
- Operates as a dusk-to-dawn photocontrol, automatically turning lights on and off in response to daylight hours
Top product applications:
- Outdoor Lighting
- Automotive Lighting
- Security Lighting
Photocontrol, Mounting Turn-Lock, Voltage 480V AC, Max. Wattage 7,200, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 0.5 Foot Candles On, 15 Foot Candles Off, Color Translucent/Yellow, Temp. Range -20 Degrees to 104 Degrees F, Length 2 3/4 in, Width 3 in, Depth 3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards ANSI C136.10, cCSAus, California Title 20, UL Listed, Includes Not Applicable
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 3.00
- Package Height: 3.30
- Package Weight: 0.20
Product info last updated on March 10, 2026 7:57pm UTC
Category: Industrial Electrical Controls and Automation
