HID, Incandescent, LED Photocontrol, 1, 000 W, Gray, 5 sec Max, 2 sec Min MPN:EK4336S
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2124475

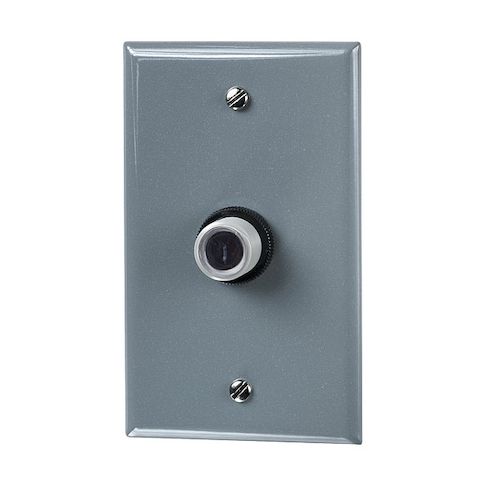

HID, Incandescent, LED Photocontrol, 1, 000 W, Gray, 5 sec Max, 2 sec Min
This versatile photocontrol from Intermatic is designed to automate lighting control for a wide range of applications. With a maximum wattage of 1,000 W and a durable polycarbonate enclosure, it can handle harsh environmental conditions. Suitable for use with incandescent, HID, and LED lighting, it offers adjustable sensitivity and a reliable SPST contact form. Ideal for commercial and industrial settings, it can be mounted on a wall and is compatible with 120-277V AC. Its compact size and energy-efficient design make it an excellent choice for smart lighting control systems. It's also compliant with California Title 20 and RoHS standards.
Top product features:
- Adjusts lighting levels automatically based on ambient light levels
- Operates in a temperature range of -40 to 158 degrees Fahrenheit
- Switches on at 1.5 foot candles and switches off at 4.50 foot candles
Top product applications:
- Outdoor Lighting
- Commercial Lighting
- Residential Lighting
Photocontrol, Mounting Wall, Voltage 120 to 277V AC, Max. Wattage 1,000, Max. Incandescent Amps 6 A, Max. Ballast Amps 6 A, 1.5 Foot Candles On, 4.50 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 1/4 in, Width 1 5/16 in, Depth 1 1/4 in, Enclosure Type Polycarbonate, Contact Form SPST, Housing Material Polycarbonate, Standards ANSI C136.24, cULus, RoHS, California Title 20, Includes Neoprene Gasket, Wall Plate
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 12
- Unit of Measure: EA
- Package Length: 1.75
- Package Width: 3.06
- Package Height: 4.88
- Package Weight: 0.39
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on January 14, 2026 11:10pm UTC
Category: Industrial Electrical Controls and Automation
