HID, Incandescent, LED Photocontrol, 1, 000 W, Blue/White, 5 sec Max, 2 sec Min MPN:LED4536SC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1771377

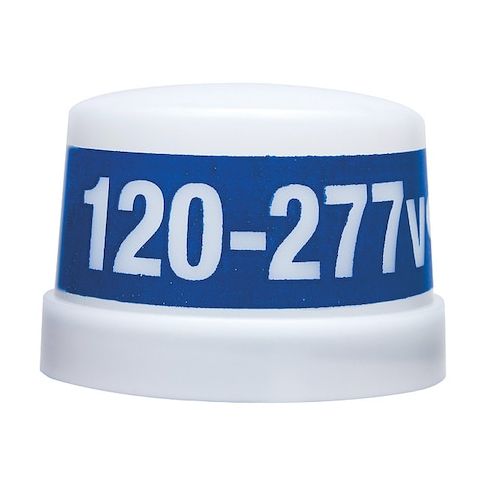

HID, Incandescent, LED Photocontrol, 1, 000 W, Blue/White, 5 sec Max, 2 sec Min
This versatile photocontrol from Intermatic is designed to optimize lighting control in various settings. With a maximum wattage of 1,000 W and a wide voltage range of 120 to 277V AC, it can be used in a variety of applications, including commercial and residential lighting systems. The photocontrol automatically turns lights on and off based on natural light levels, reducing energy consumption and prolonging lamp life. Its compact design and durable construction make it easy to install and maintain, while its ANSI C136.10 certification ensures compliance with industry standards. Suitable for use in temperatures from -40 to 158°F.
Top product features:
- Operates at a maximum of 1,000 watts
- Turns on when light level drops to 1.5 foot candles and turns off when light level increases to 2.25 foot candles
- Operates within a temperature range of -40 degrees to 158 degrees Fahrenheit
Top product applications:
- Outdoor Lighting
- Parking Lot Lighting
- Security Lighting
Photocontrol, Mounting Locking, Voltage 120 to 277V AC, Max. Wattage 1,000, Max. Incandescent Amps 8.3 A, Max. Ballast Amps 8.3 A, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color White/Blue, Temp. Range -40 Degrees to 158 Degrees F, Length 2 3/4 in, Enclosure Type Polycarbonate, Contact Form SPST, Housing Material Polypropylene, Standards ANSI C136.10, cULus, California Title 20, Includes Not Applicable
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 7.30
- Package Height: 7.60
- Package Weight: 4.10
Product info last updated on January 15, 2026 6:22am UTC
Category: Industrial Electrical Controls and Automation
