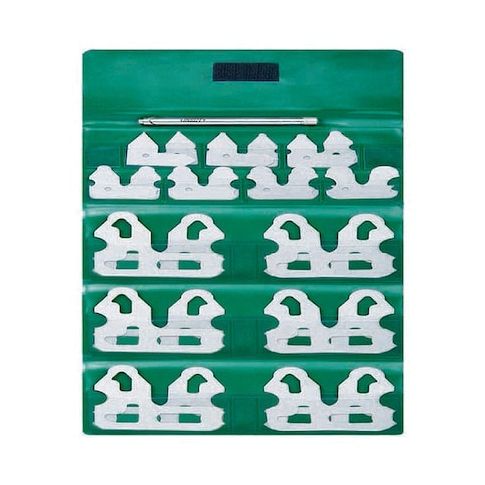

Radius Gage Set, Range 9/16 to 1" MPN:4804-8E
Radius Gage Set, Range 9/16 to 1"
Accurately measure complex curves and radii with the Insize Radius Gage Set. This versatile tool features 3 convex and 2 concave radii, measuring 9/16 to 1 inch in 16th increments, with an accuracy of +/- 0.0025 inches. Perfect for precision machining, woodworking, and manufacturing, this gage set is ideal for measuring complex curves, pipes, and tubing. Its compact design and convenient pouch make it easy to store and transport. With its high accuracy and versatility, the Insize Radius Gage Set is a must-have for professionals and hobbyists alike, ensuring precise measurements and efficient workflows.
Top product features:
- The Radius Gage Set measures radii in 16ths of an inch.
- The Radius Gage Set includes 3 convex and 2 concave radii.
- The Radius Gage Set measures radii with an accuracy of +/0.0025 inches.
Top product applications:
- Inspecting and checking the radius of curved surfaces in manufacturing and quality control
- Measuring the radius of circular objects such as pipes, tubes, and rods in construction and engineering
- Verifying the accuracy of rounded edges and corners in woodworking and furniture making
Radius Gauge Set, Range 9/16 in to 1 in by 16ths, Accuracy +/-0.0025 in, Configuration 3 Convex & 2 Concave Radii, Dimension Type Angle, Included Sizes 1 in, 11/16 in, 13/16 in, 15/16 in, 3/4 in, 5/8 in, 7/8 in, 9/16 in, Increments 16ths, Minimum Measurement - Inch 9/16 in, Number of Leaves 8, Set Style Leaves in a Pouch, Size Not Applicable, Case Included No, Finish Uncoated, Maximum Measurement - Inch 1 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 6.40
- Package Height: 2.00
- Package Weight: 0.80
Product info last updated on February 16, 2026 2:36am UTC
Category: Measuring and Marking Tools
