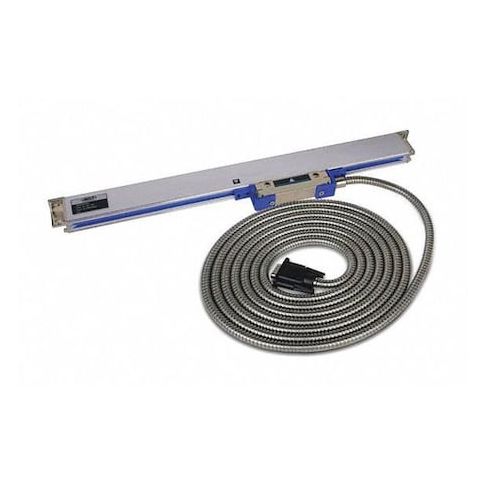

Linear Scale, 1" dia., 98" L MPN:ISL-B5-2500
Linear Scale, 1" dia., 98" L
The Linear Scale from Insize is a precision measuring tool ideal for various applications, including CNC machining, metrology, and quality control. With a resolution of 0.0002 inches and accuracy of +/- 197 microns, this scale ensures precise measurements. Its compact design and IP54 rating make it suitable for use in harsh environments. The scale's data output feature allows for seamless integration with machines and systems. Its standard encoder body style and maximum measurement range of 100 inches make it a versatile tool for a range of industries, including manufacturing, aerospace, and automotive.
Top product features:
- Resolution 0.0002 in, allowing for precise measurements
- Accuracy +/-(197+5L)micron in, ensuring reliable results
- Effective Range 2500 mm, enabling measurements of large objects
Top product applications:
- Machine tool calibration
- Precision measurement in manufacturing
- Automotive quality control
Linear DRO Scale, Resolution 0.0002 in, Accuracy +/-(197+5L)micron in, IP Rating IP54, Data Output Type Cabled, Detection Type TTL, Effective Range 2500 mm, Encoder Body Style Standard, Maximum Measurement - Inch 100 in, Maximum Measurement - mm 2,500 mm, Maximum Operating Temperature - C 70 Degrees C, Maximum Operating Temperature - F 158 Degrees F, Minimum Measurement - Inch 0 in, Minimum Measurement - mm 0 mm, Minimum Operating Temperature - C -10 Degrees C
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 63 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 111.02
- Package Width: 6.69
- Package Height: 5.51
- Package Weight: 25.35
Product info last updated on February 19, 2026 10:39am UTC
Category: Measuring and Marking Tools
